XWorm: Technical Analysis of a New Malware Version
HomeMalware Analysis
XWorm: Technical Analysis of a New Malware Version

In this article, we will take a look at the latest version of an XWorm sample — a widespread malicious program that is advertised for sale on underground forums.

We will analyze the functionality of our sample, as well as extract its configuration.

Let’s get started.

What is XWorm Malware?

XWorm is a malware that targets Windows operating systems. It is known for its stealth and persistence, and a wide range of malicious activities, spanning from remote desktop control to ransomware and information theft.

Unfortunately, adversaries employ this threat widely —it’s not uncommon to see it in ANY.RUN’s top 10 most used malware by uploads.

XWorm dynamic sandbox analysis

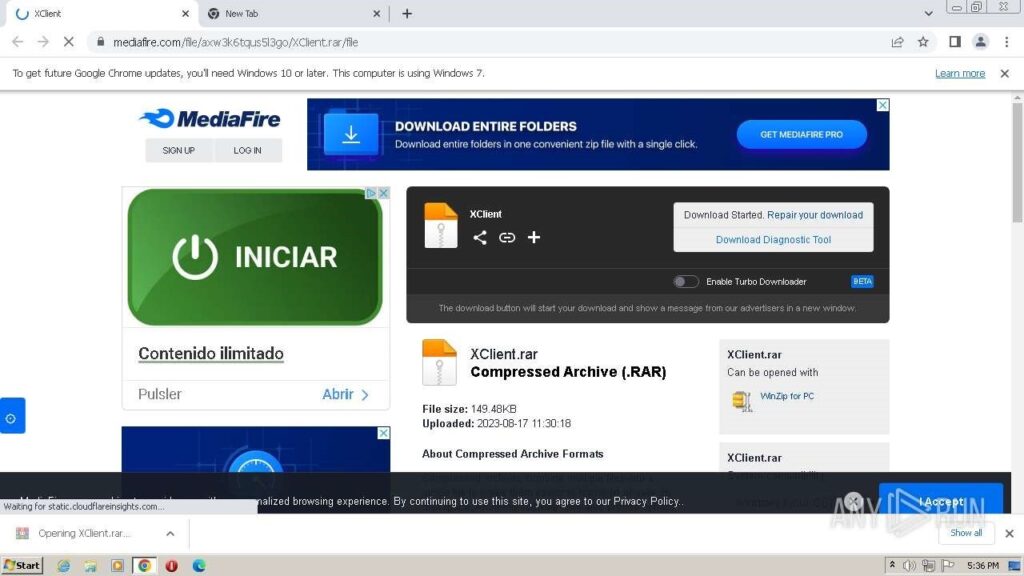

While searching for new threats, we discovered an interesting sample, uploaded by our users to Public submissions. It was downloaded from the file hosting “Mediafire” in a RAR archive with a password:

A sample with a RAR archive in ANY.RUN

After launching, the threat was identified by Suricata’s network rules as XWorm:

XWorm is identified in ANY.RUN

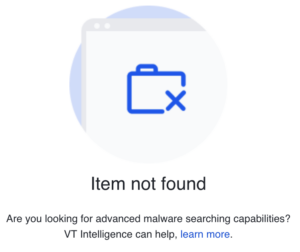

We decided to check the sample on VT to confirm that it was indeed XWorm, but at the time of writing this article, we were unable to find it there:

VT is missing Xworm sample

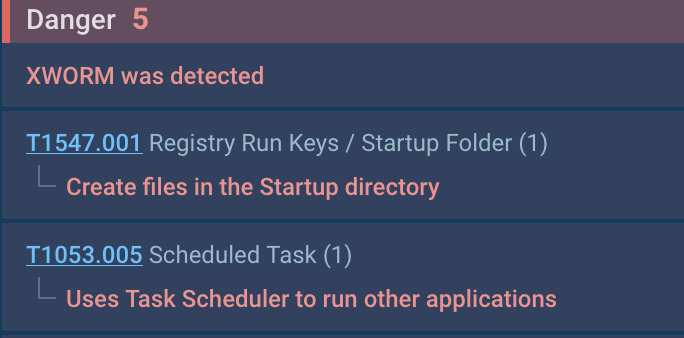

The initial analysis, according to the indicators set on process 2784, revealed that the software adds its shortcut to the startup (MITRE T1547.001) and uses the task scheduler (MITRE T1053.005):

The initial Xworm analysis

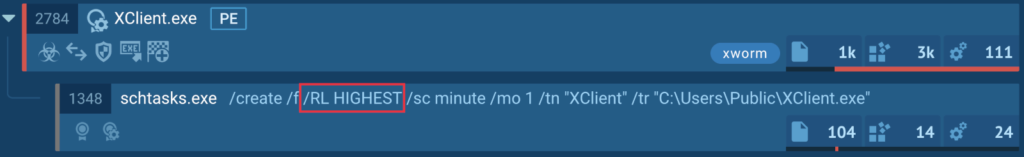

The use of the scheduler is necessary to restart the software with elevated privileges, as indicated by the “/RL HIGHEST” parameter.

Restart the software with elevated privilege

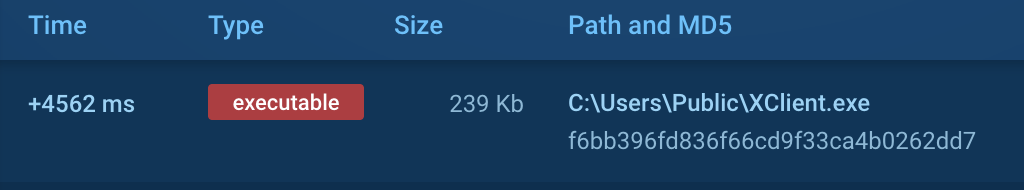

According to the file operation data, the software is installed in the Public directory (MITRE T1074.001):

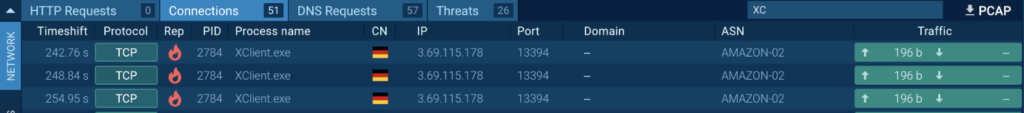

Interestingly, the software attempts to connect to a remote server, but no response is received (MITRE T1571):

Xworm attempts to connect to a remote server,

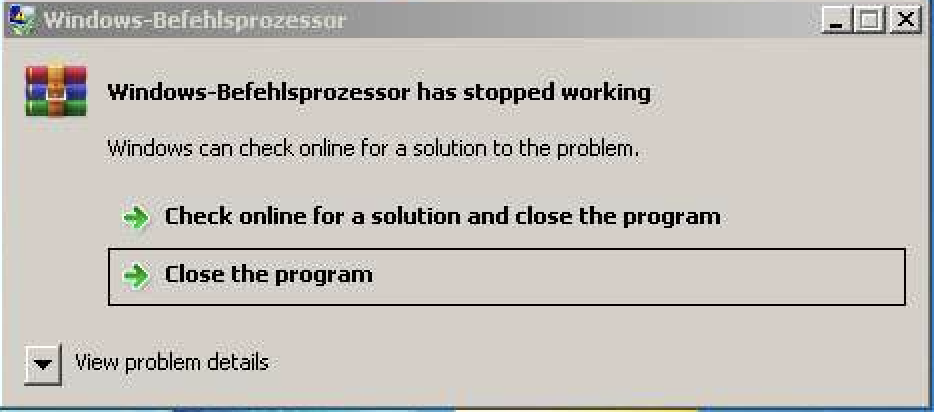

We decided to restart the sample and check for additional activities. Unfortunately, it crashed almost immediately after launch:

Xworm restart crash

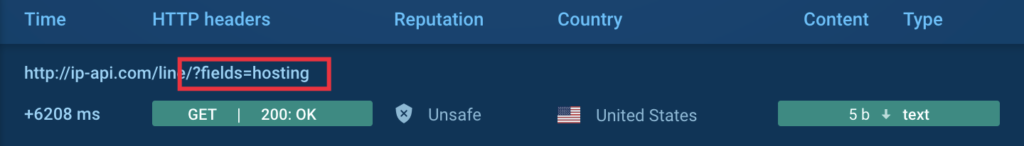

We became interested in investigating the cause of the “crash,” and we found that the user-launched sample and the sample restarted by us exhibited different behavior patterns. Specifically, the restarted sample queries a service to determine the external IP address (MITRE T1590.005) before crashing. Typically, in addition to the IP address, such services provide the ability to determine whether the software is running on a virtual host:

This is precisely what XWorm does — it attempts to verify whether it’s running on a user’s physical machine or not.

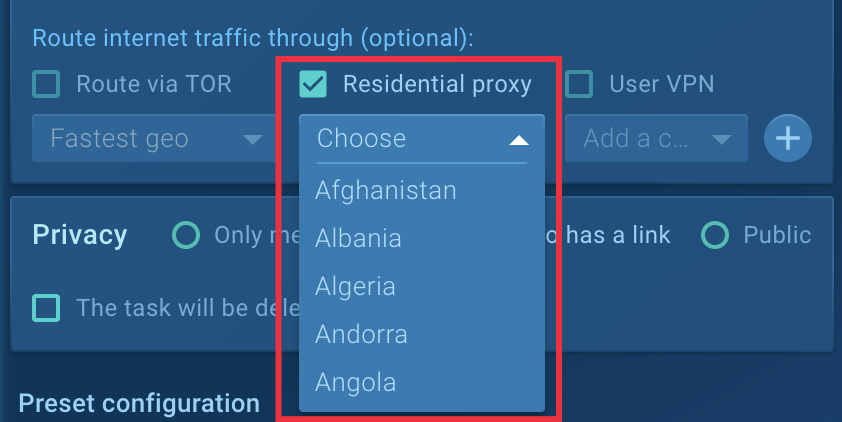

To solve this problem, ANY.RUN has a useful feature called Residential Proxy which allows you to hide your actual location and convinces the software that it’s running on a real user’s machine. You can choose any location, in case it’s targeted malware requiring IP addresses from specific countries:

Restarting with the Residential Proxy option enabled was successful, and XWorm exhibited its activity.

Sign up now and run this task in ANY.RUN with residential proxy

Create free account

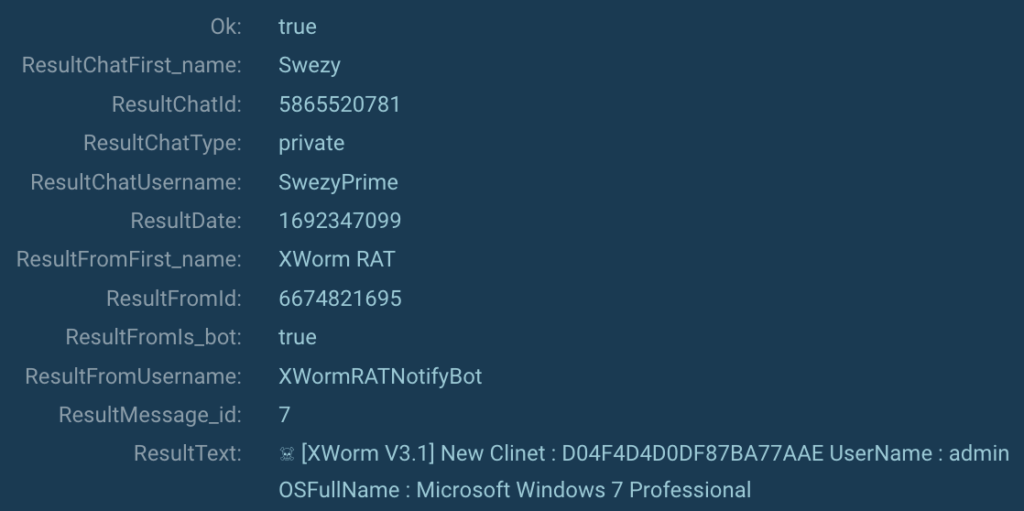

Additionally, we activated the MITM proxy option to find out what data is being transmitted to Telegram (MITRE T1102):

Xworm transmitts data to Telegram

It’s evident that the software transmits its version (XWorm V3.1), the machine’s username, the operating system version, and likely a hash of a new victim (MITRE T1082).

Xworm static analysis

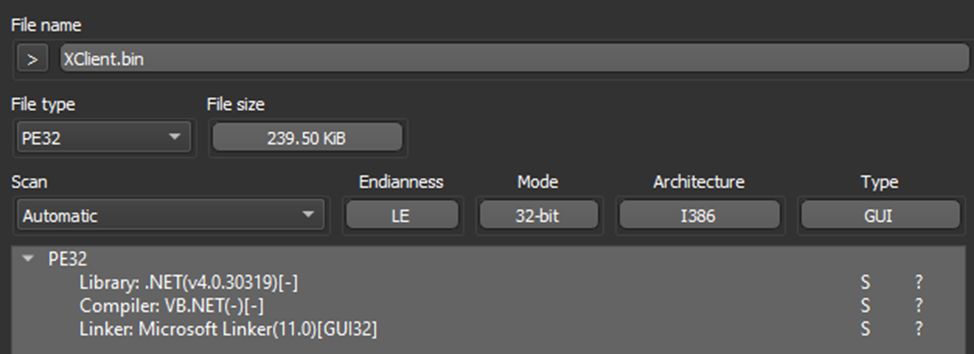

The first step is to place our subject into the DIE — a utility for initial analysis.

Xworm analysis in DIE

As we can see, we are dealing with a .NET variation, so we promptly opened it in dnSpy.

Xworm analysis in dnSpy

We are immediately met with an unfavorable picture — all the program’s members were subjected to obfuscation (MITRE T1027). DIE could not recognize the packer even with the “Heuristic scan” being checked.

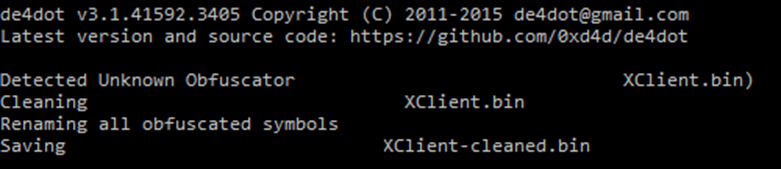

Our first thought was to try using de4dot to simplify further analysis.

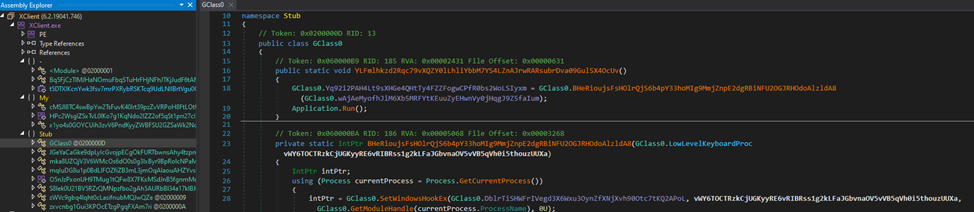

de4dot usage for further Xworm  analysis
 Xworm  analysis

As we can see, not much has changed, so we must continue analyzing what we have.

Reverse engineering: additional anti-evasion techniques and persistence gain

To slow down the analysis and hide from detection systems, the sample employs the following technologies:

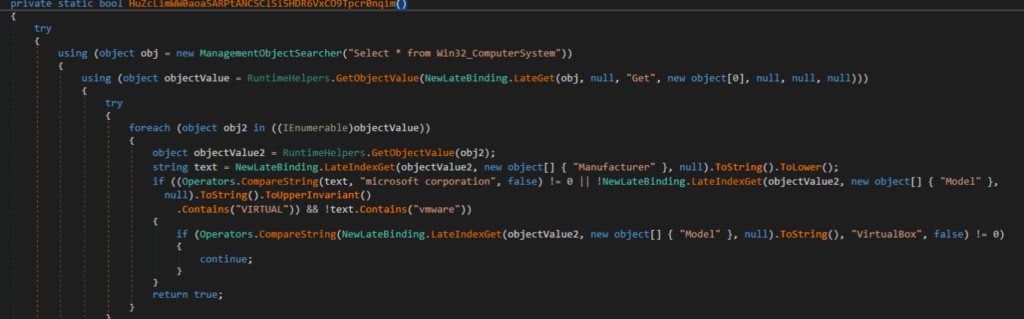

1. Virtualization detection using the WMI query “Select * from Win32_ComputerSystem” and checking for operation within VmWare or VirtualBox environments (MITRE T1047

Detection of a virtual machine

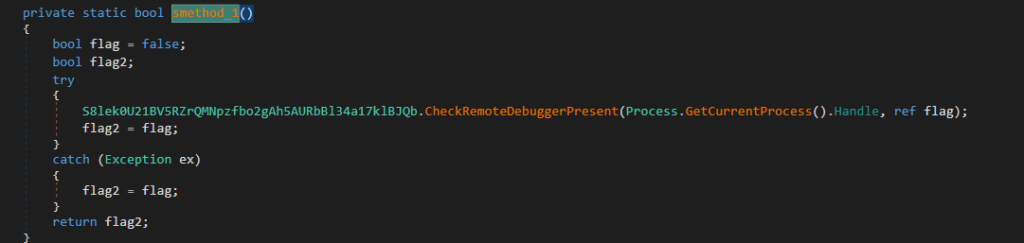

2. Debugger detection using the CheckRemoteDebuggerPresent API function

Detection of the debugger using CheckRemoteDebuggerPresent

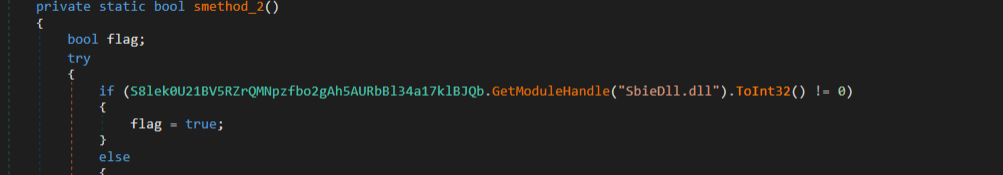

3. Checking for the loaded dynamic library SbieDll.dll, characteristic of Sandboxie, which is a sandbox-based isolation program.

Detection of Sandboxie

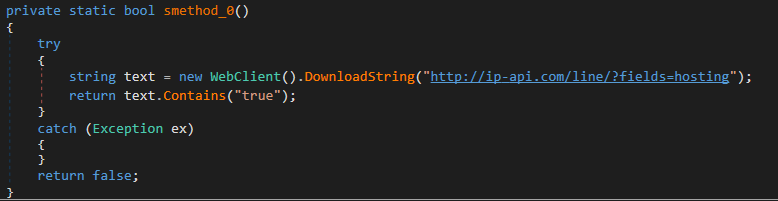

4. A query to check whether the current machine is hosted or located in a data center (this finally clarifies why the sample initially “crashed”)

Detection of hosting

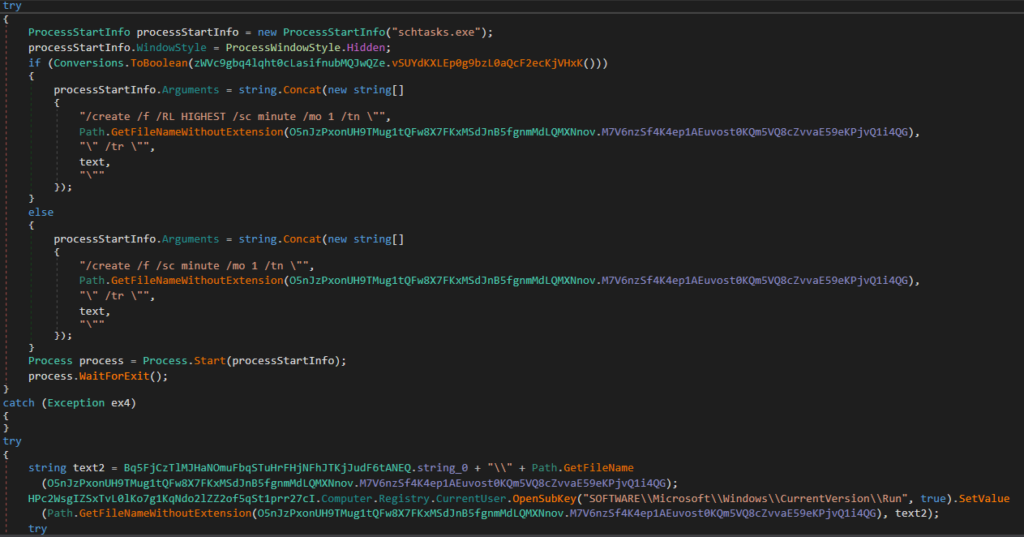

The sample also gains a foothold by utilizing the registry and the task scheduler:

Xworm utilizes the registry and the task scheduler

Reverse engineering: Xworm config extraction

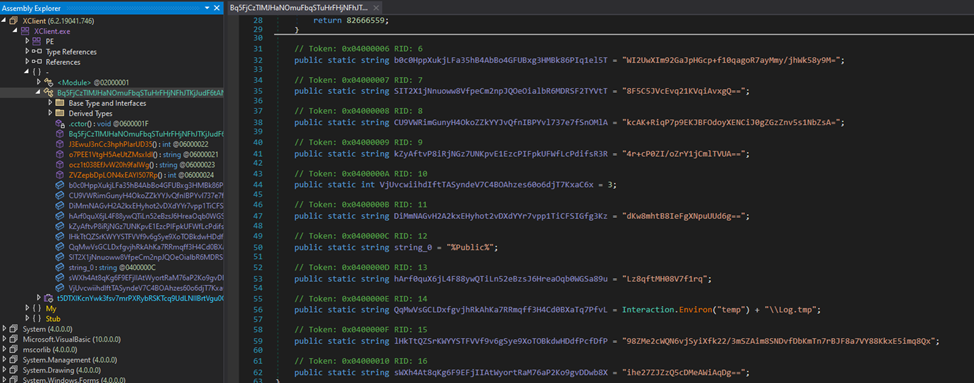

After a brief review of the methods’ contents, a constructor was found that bears a striking resemblance to a block containing settings.

Xworm contents

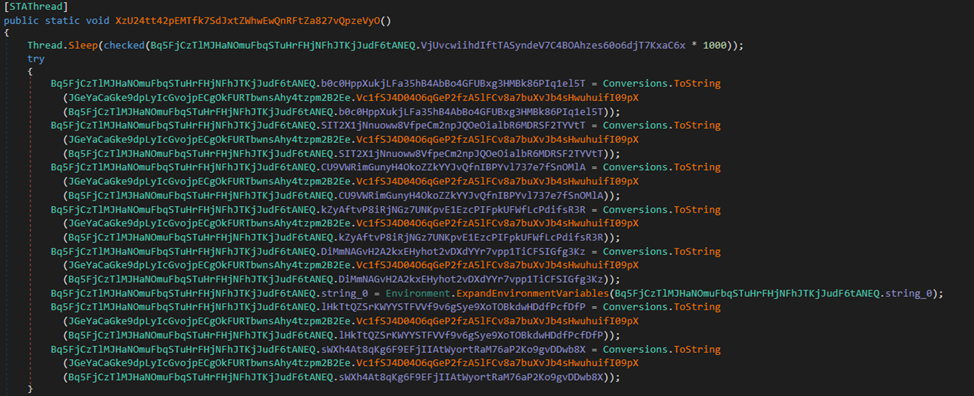

After examining cross-references, we arrive at a method that looks like this:

Xworm reverse-engineering

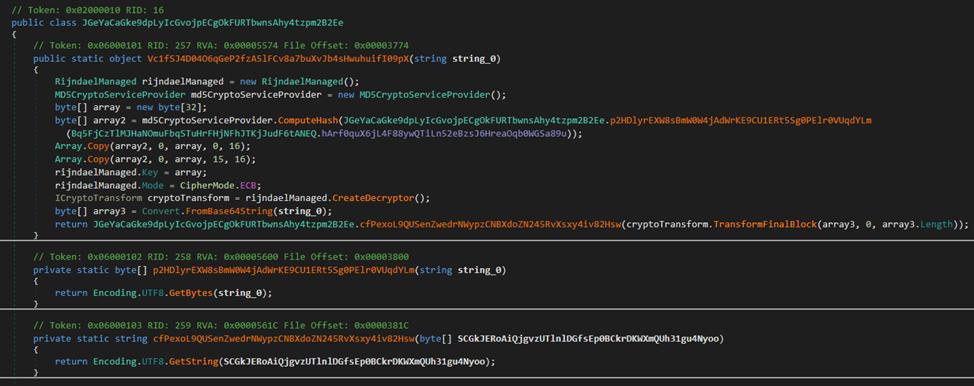

As we can see, some fields undergo a reassignment stage, after processing by the method “Vc1fSJ4D04O6qGeP2fzA5lFCv8a7buXvJb4sHwuhuifI09pX.” Let’s take a closer look at it.

Xworm reverse-engineering

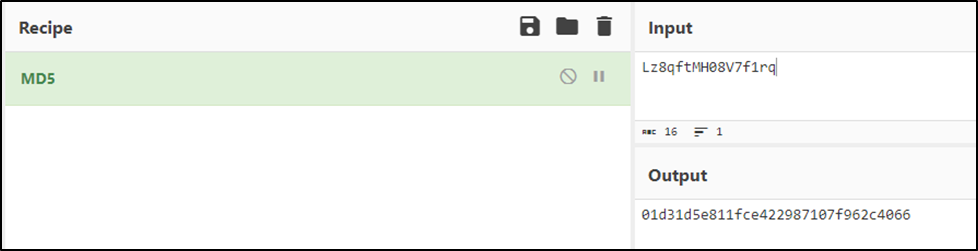

First, an MD5 hash is computed from the value of the field “hArf0quX6jL4F88ywQTiLn52eBzsJ6HreaOqb0WGSa89u” from the presumed settings section.

Then the obtained value is copied twice into a temporary array (perhaps the malware developer made an off-by-one error when using the Array.Copy method, resulting in the MD5 not being copied entirely twice; the last copied byte after the first copying is overwritten by the subsequent copying, so that the last byte in the resulting array is always zero). The obtained array is used as a key to decrypt the incoming base64 strings using AES in ECB mode.

It’s also interesting that the field used is also a mutex.

Xworm mutex

Now we have all the necessary information for decrypting the settings.

Xworm reverse-engineering

Our final AES key looks like this: “01d31d5e811fce422987107f962c4001d31d5e811fce422987107f962c406600.”

Xworm reverse-engineering

And here we have reached the core of our target’s sample.

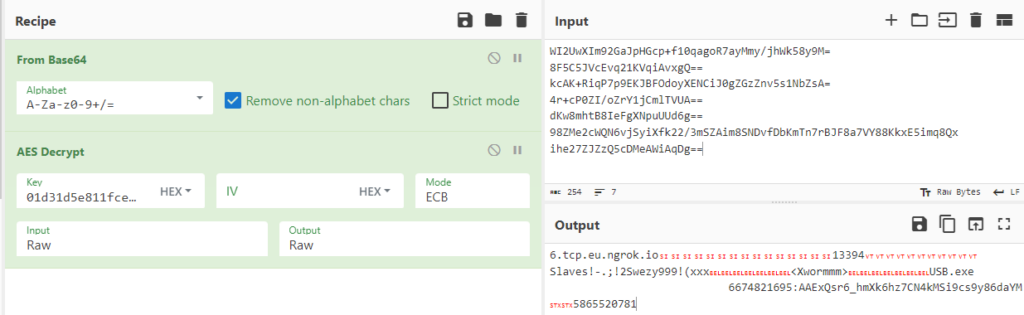

The result can be viewed in CyberChef here

The final config mapping is as follows:

Host  6[.]tcp.eu.ngrok[.]io
Port  13394
AES key  Slaves!-.;!2Swezy999!(xxx
Splitter  Xwormmm
Sleep time
USB drop file  USB.exe
Mutex  Lz8qftMH08V7f1rq
Log file  %temp%\\Log.tmp
Telegram token  6674821695:AAExQsr6_hmXk6hz7CN4kMSi9cs9y86daYM
Telegram chat id  5865520781

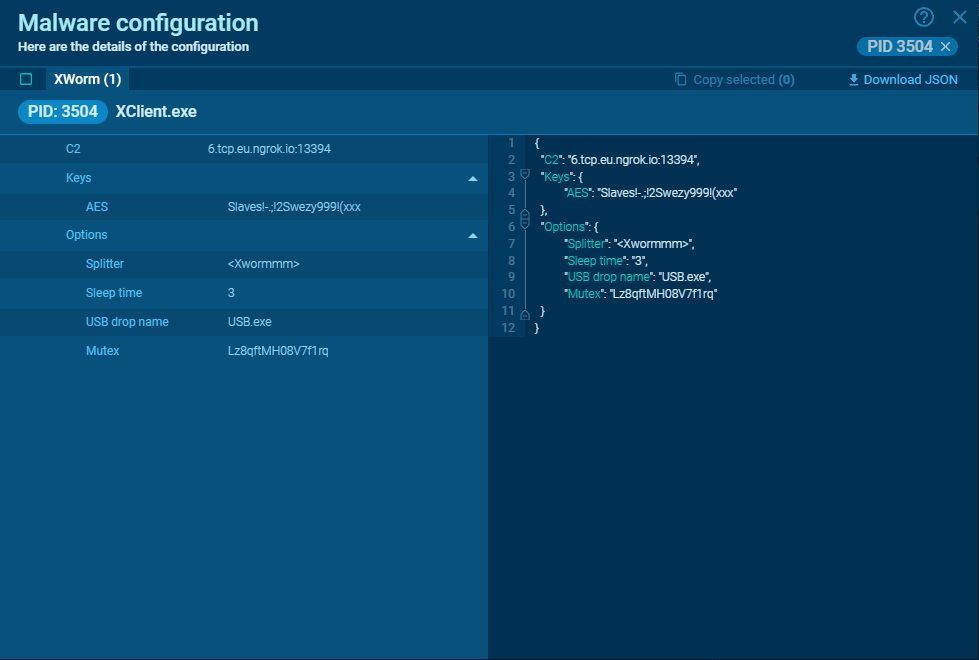

When the goal isn’t to study the malware in-depth but rather to quickly obtain the configuration, this can be efficiently achieved by running the sample in ANY.RUN. This method provides a straightforward way to access the necessary information without the need for extensive analysis, saving potentially hours of work.

Xworm malware configuration in ANY.RUN

See it in action for yourself here

IOCs

Analyzed files

MD5  F6BB396FD836F66CD9F33CA4B0262DD7
SHA1  BFC7036E32A59AC25DB505D263B5F4CADE24C53C
SHA256  1073FF4689CB536805D2881988B72853B029040F446AF5CED18D1BC08B2266E1
SS   6144:bfIbSc83qUhcX7elbKTua9bfF/H9d9n+:bLc83q3X3u+G

MITRE (ARMATTACK)

Tactic  Technique  Description
TA0003: Persistence  T1547: Registry Run Keys / Startup Folder  Adds a shortcut to the startup folder
TA0003: Persistence  T1053: Scheduled Task  Uses the task scheduler
TA0009: Collection  T1074: Local Data Staging  The malware saves itself in the Public directory
TA0011: Command and Control  T1571: Non-Standard Port  Connects to a remote server
TA0043: Reconnaissance  T1590: IP Addresses  Checks the IP of the running system
TA0011: Command and Control  T1102: Bidirectional Communication  Communicates through Telegram
TA0007: Discovery  T1082: System Information Discovery  Collects information about the victim's computer
TA0005: Defense Evasion  T1027: Command Obfuscation  Obfuscates the executable file
TA0002: Execution  T1047: Windows Management Instrumentation  Gathers system information to detect virtualization
TA0005: Defense Evasion  T1027: Embedded Payloads  Stores information in a mutex

DNS requests

  • 6[.]tcp[.]eu[.]ngrok[.]io

More samples for your research

https://app.any.run/tasks/d3858744-f1b2-4a9b-8ef7-deccada2a160/

https://app.any.run/tasks/75f66fd6-d989-4f06-a348-c65e135e8ab4/

https://app.any.run/tasks/5fab7db5-267e-46f6-a374-0f42de1cb328/

https://app.any.run/tasks/b9275944-39fe-42cb-9eae-6b2e05f0892f/

https://app.any.run/tasks/803758bf-387b-42e2-80cc-f20e7140cac4/
