File name:

OFFICE_XP_SP6.EXE

Full analysis: https://app.any.run/tasks/63fe41ec-dae8-4c4e-83a1-61e996c7b6d1
Verdict: Malicious activity
Analysis date: May 14, 2020, 15:00:33
OS: Windows 7 Professional Service Pack 1 (build: 7601, 32 bit)
Indicators:
MIME: application/x-dosexec
File info: PE32 executable (GUI) Intel 80386 Mono/.Net assembly, for MS Windows
MD5:

CBECCFBE349058655F60A068A534B331

SHA1:

88D9363C3971C6C1AD1566C7A90F4A0B2CAE0F43

SHA256:

75860E1A7AF6BBAECDF5FF832DC587013E0BD7283F4C3DA2CD1F6617185637AF

SSDEEP:

1536:R+1UzOgVQ5B6umOP5Wza7iwUe4S1m97zQLwo9iElQ:R+lgW5B6umOP5Wu7we4S1m978lQ

ANY.RUN is an interactive service which provides full access to the guest system. Information in this report could be distorted by user actions and is provided for user acknowledgement as it is. ANY.RUN does not guarantee maliciousness or safety of the content.
  • MALICIOUS

    • Changes the autorun value in the registry

      • OFFICE_XP_SP6.EXE (PID: 3056)
      • OFFICE_XP_SP6.EXE (PID: 3544)
    • Loads the Task Scheduler COM API

      • mmc.exe (PID: 3464)
    • Application was dropped or rewritten from another process

      • Winmg.exe (PID: 3316)
    • Runs PING.EXE for delay simulation

      • cmd.exe (PID: 3092)
  • SUSPICIOUS

    • Creates files in the Windows directory

      • OFFICE_XP_SP6.EXE (PID: 3544)
      • msshield.exe (PID: 1780)
    • Starts CMD.EXE for commands execution

      • OFFICE_XP_SP6.EXE (PID: 3544)
    • Executable content was dropped or overwritten

      • OFFICE_XP_SP6.EXE (PID: 3544)
      • msshield.exe (PID: 1780)
    • Starts itself from another location

      • OFFICE_XP_SP6.EXE (PID: 3544)
  • INFO

    • Manual execution by user

      • OFFICE_XP_SP6.EXE (PID: 3544)
      • mmc.exe (PID: 3464)
      • regedit.exe (PID: 3048)
      • mmc.exe (PID: 588)
      • regedit.exe (PID: 3436)
Find more information about signature artifacts and mapping to MITRE ATT&CK™ MATRIX at the full report
No Malware configuration.

TRiD

.exe | Generic CIL Executable (.NET, Mono, etc.) (63.1)
.exe | Win64 Executable (generic) (23.8)
.dll | Win32 Dynamic Link Library (generic) (5.6)
.exe | Win32 Executable (generic) (3.8)
.exe | Generic Win/DOS Executable (1.7)

EXIF

EXE

MachineType: Intel 386 or later, and compatibles
TimeStamp: 2016:12:08 12:27:30+01:00
PEType: PE32
LinkerVersion: 11
CodeSize: 89088
InitializedDataSize: 2048
UninitializedDataSize: -
EntryPoint: 0x17ace
OSVersion: 4
ImageVersion: -
SubsystemVersion: 4
Subsystem: Windows GUI
FileVersionNumber: 1.0.0.0
ProductVersionNumber: 1.0.0.0
FileFlagsMask: 0x003f
FileFlags: (none)
FileOS: Win32
ObjectFileType: Executable application
FileSubtype: -
LanguageCode: Neutral
CharacterSet: Unicode
Comments: McAfee Security Shield
CompanyName: McAfee
FileDescription: McAfee Security Shield
FileVersion: 1.0.0.0
InternalName: Worm.exe
LegalCopyright: Copyright © McAfee 2012
OriginalFileName: Worm.exe
ProductName: McAfee
ProductVersion: 1.0.0.0
AssemblyVersion: 1.0.0.0

Summary

Architecture: IMAGE_FILE_MACHINE_I386
Subsystem: IMAGE_SUBSYSTEM_WINDOWS_GUI
Compilation Date: 08-Dec-2016 11:27:30
Debug artifacts:
  • C:\TnS\TnS-Main\0_Dev\Source\AttackMachine\Auxiliary\WmiWorm\Worm\Worm\obj\x86\Release\Worm.pdb
Comments: McAfee Security Shield
CompanyName: McAfee
FileDescription: McAfee Security Shield
FileVersion: 1.0.0.0
InternalName: Worm.exe
LegalCopyright: Copyright © McAfee 2012
OriginalFilename: Worm.exe
ProductName: McAfee
ProductVersion: 1.0.0.0
Assembly Version: 1.0.0.0

DOS Header

Magic number: MZ
Bytes on last page of file: 0x0090
Pages in file: 0x0003
Relocations: 0x0000
Size of header: 0x0004
Min extra paragraphs: 0x0000
Max extra paragraphs: 0xFFFF
Initial SS value: 0x0000
Initial SP value: 0x00B8
Checksum: 0x0000
Initial IP value: 0x0000
Initial CS value: 0x0000
Overlay number: 0x0000
OEM identifier: 0x0000
OEM information: 0x0000
Address of NE header: 0x00000080

PE Headers

Signature: PE
Machine: IMAGE_FILE_MACHINE_I386
Number of sections: 3
Time date stamp: 08-Dec-2016 11:27:30
Pointer to Symbol Table: 0x00000000
Number of symbols: 0
Size of Optional Header: 0x00E0
Characteristics:
  • IMAGE_FILE_32BIT_MACHINE
  • IMAGE_FILE_EXECUTABLE_IMAGE

Sections

Name
Virtual Address
Virtual Size
Raw Size
Charateristics
Entropy
.text
0x00002000
0x00015AD4
0x00015C00
IMAGE_SCN_CNT_CODE, IMAGE_SCN_MEM_EXECUTE, IMAGE_SCN_MEM_READ
5.48458
.rsrc
0x00018000
0x000005D0
0x00000600
IMAGE_SCN_CNT_INITIALIZED_DATA, IMAGE_SCN_MEM_READ
4.12398
.reloc
0x0001A000
0x0000000C
0x00000200
IMAGE_SCN_CNT_INITIALIZED_DATA, IMAGE_SCN_MEM_DISCARDABLE, IMAGE_SCN_MEM_READ
0.10191

Resources

Title
Entropy
Size
Codepage
Language
Type
1
5.00112
490
UNKNOWN
UNKNOWN
RT_MANIFEST

Imports

mscoree.dll
No data.

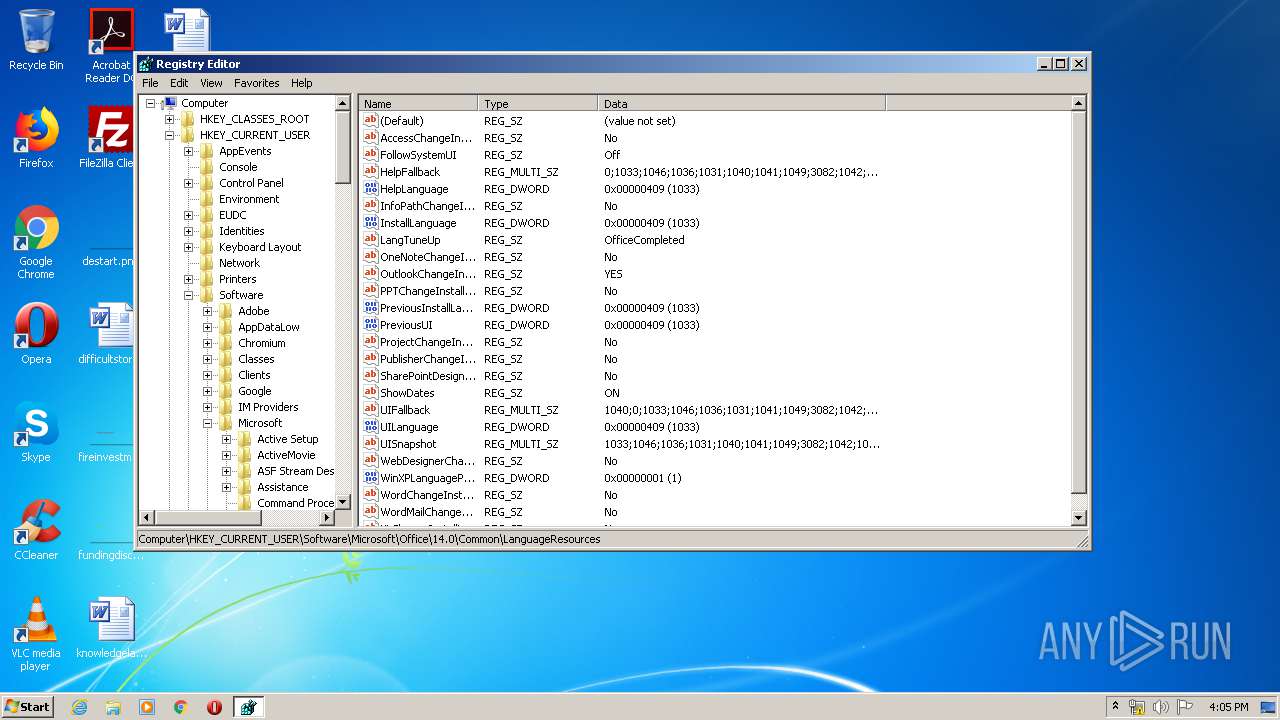

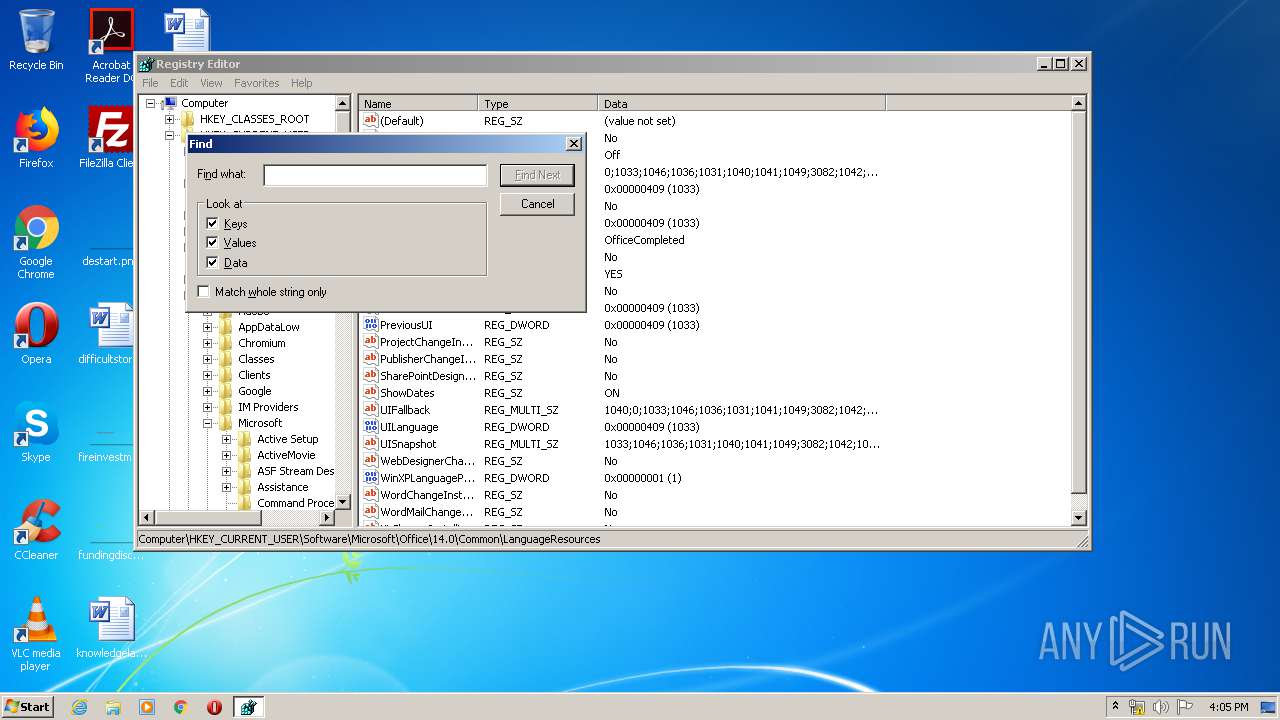

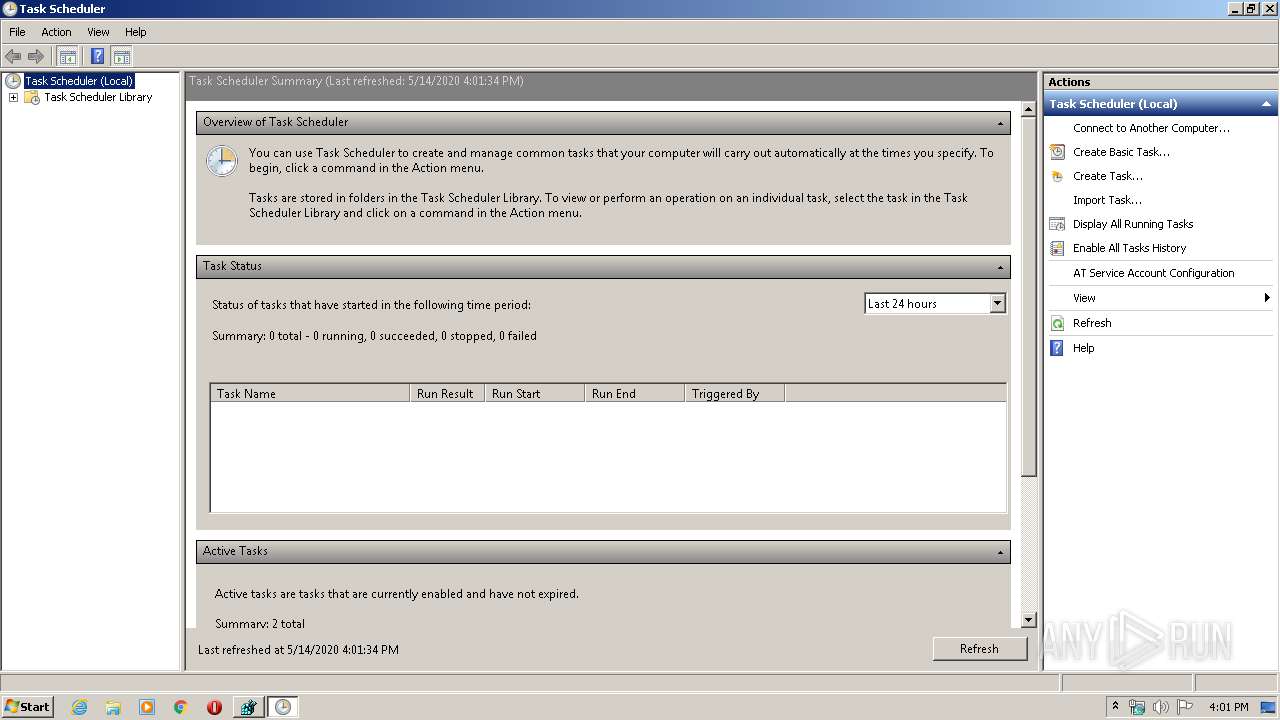

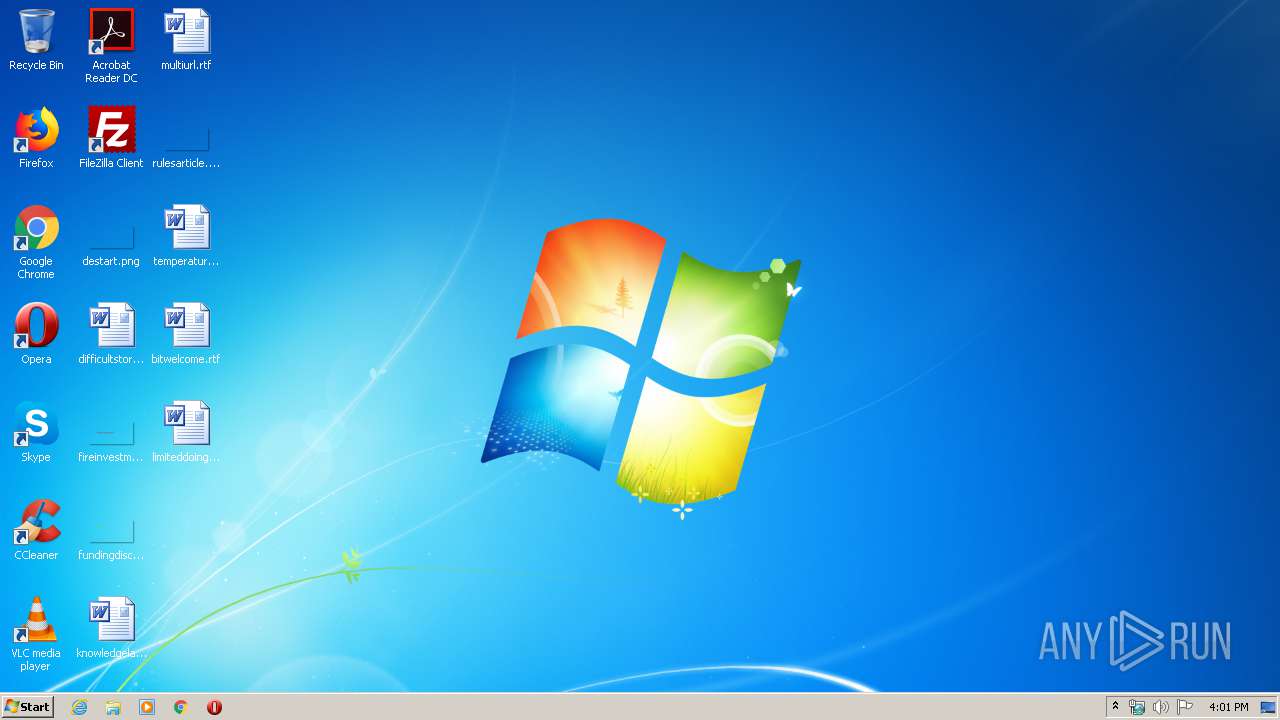

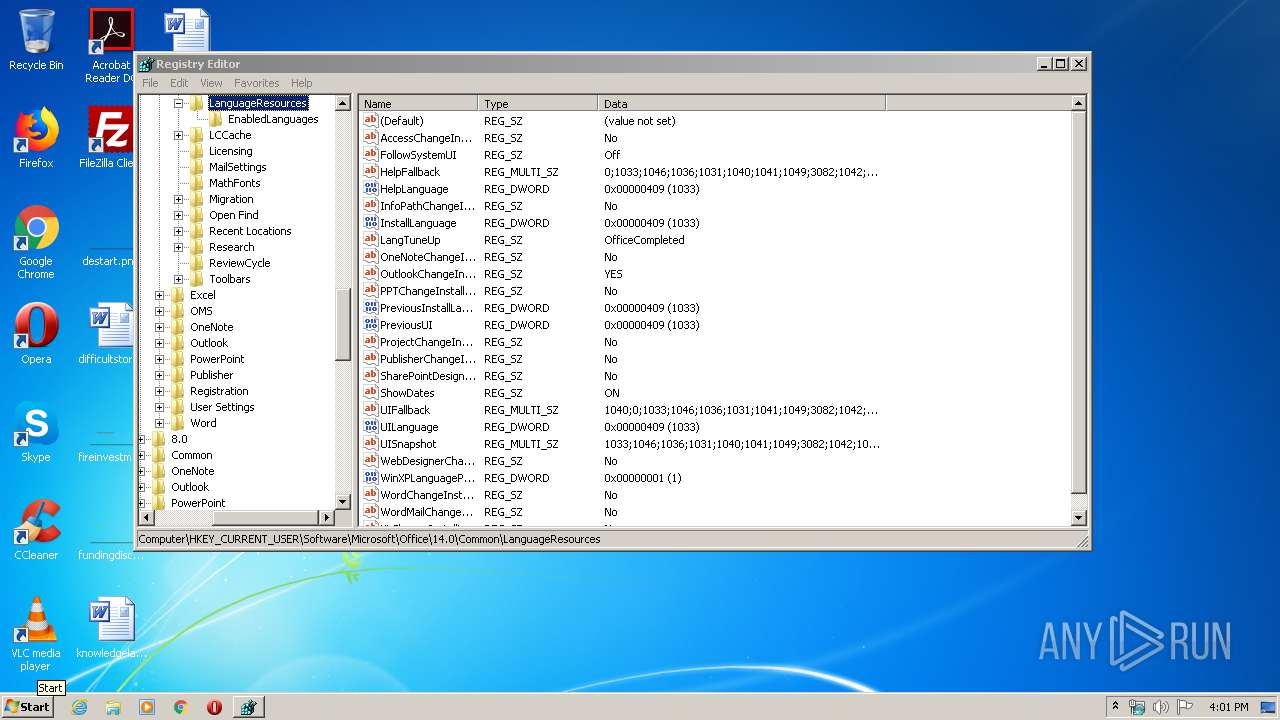

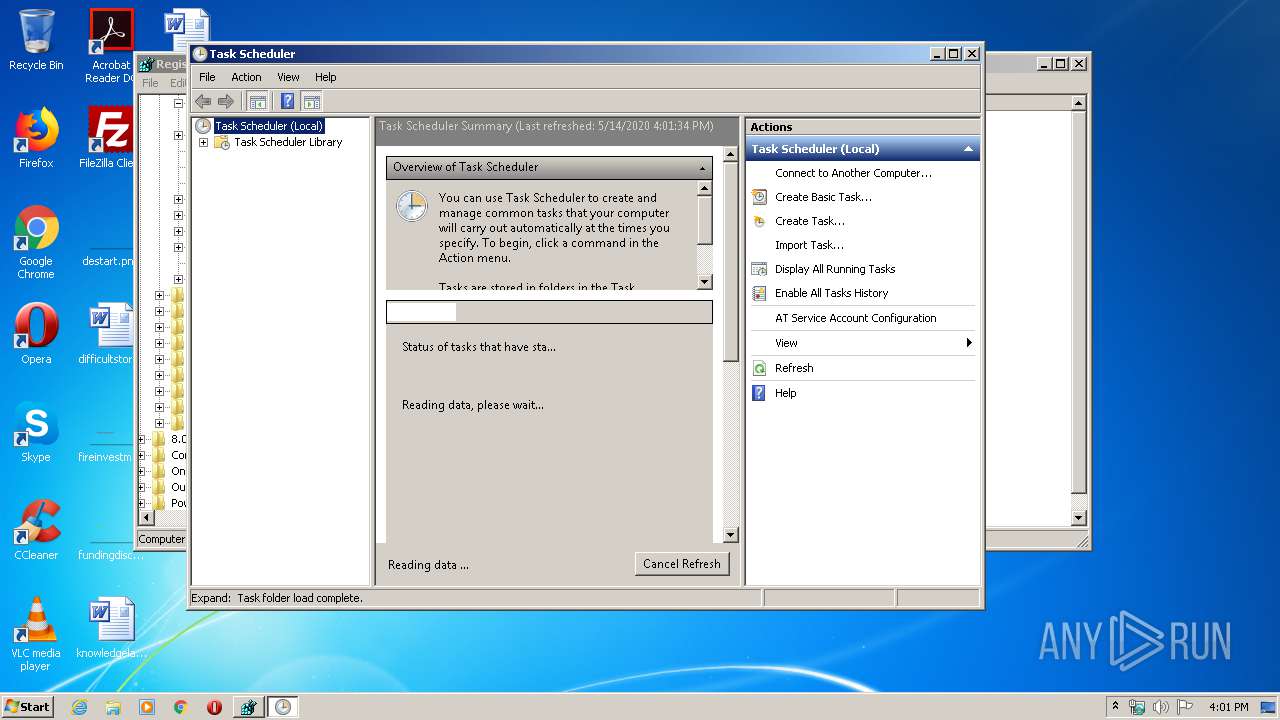

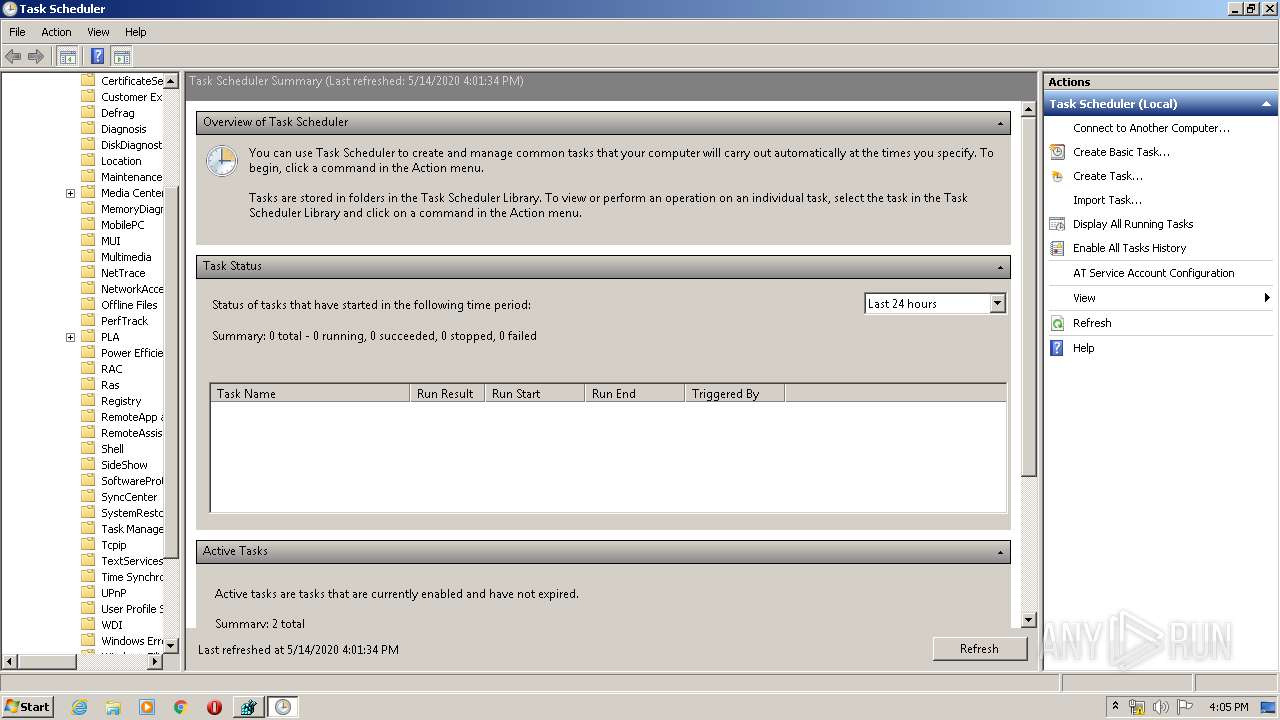

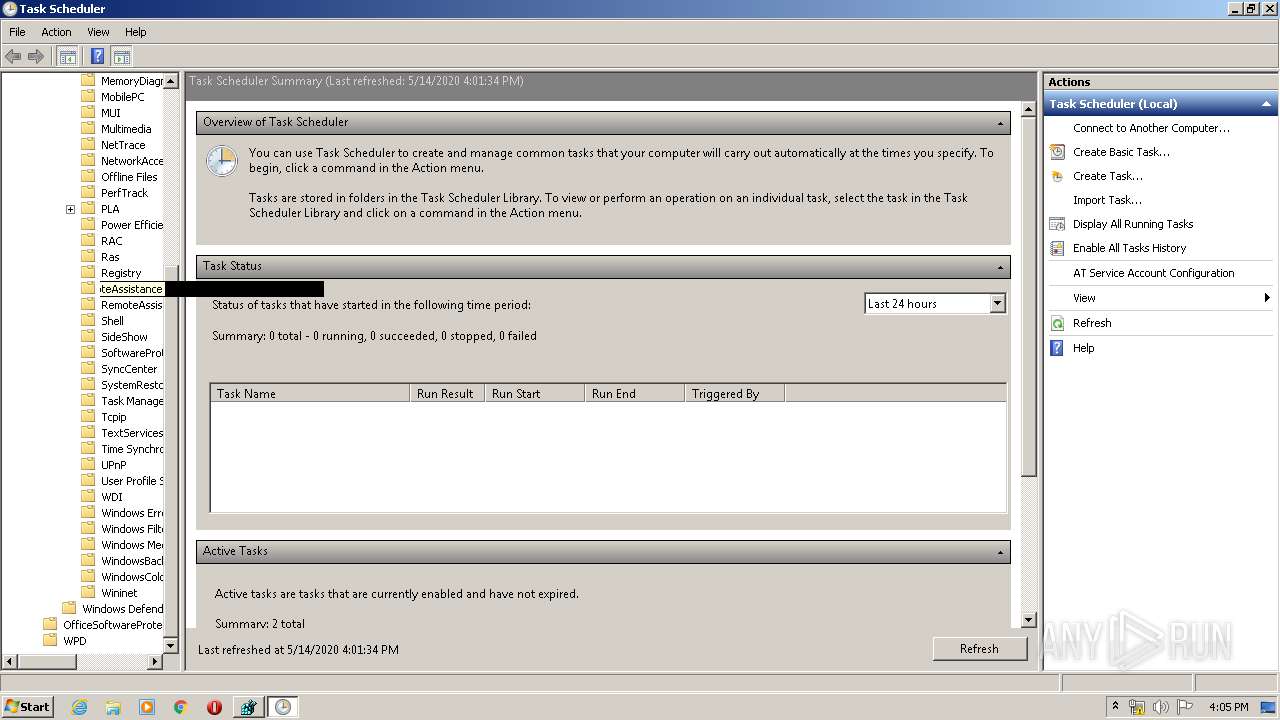

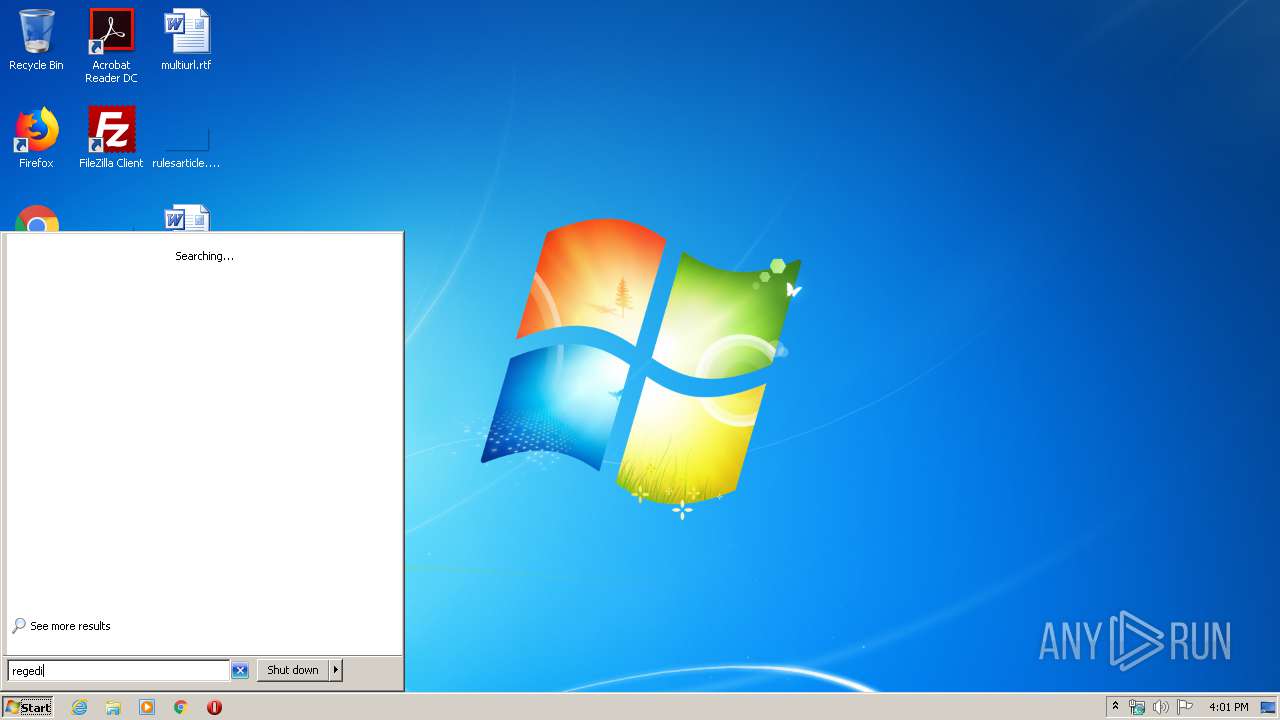

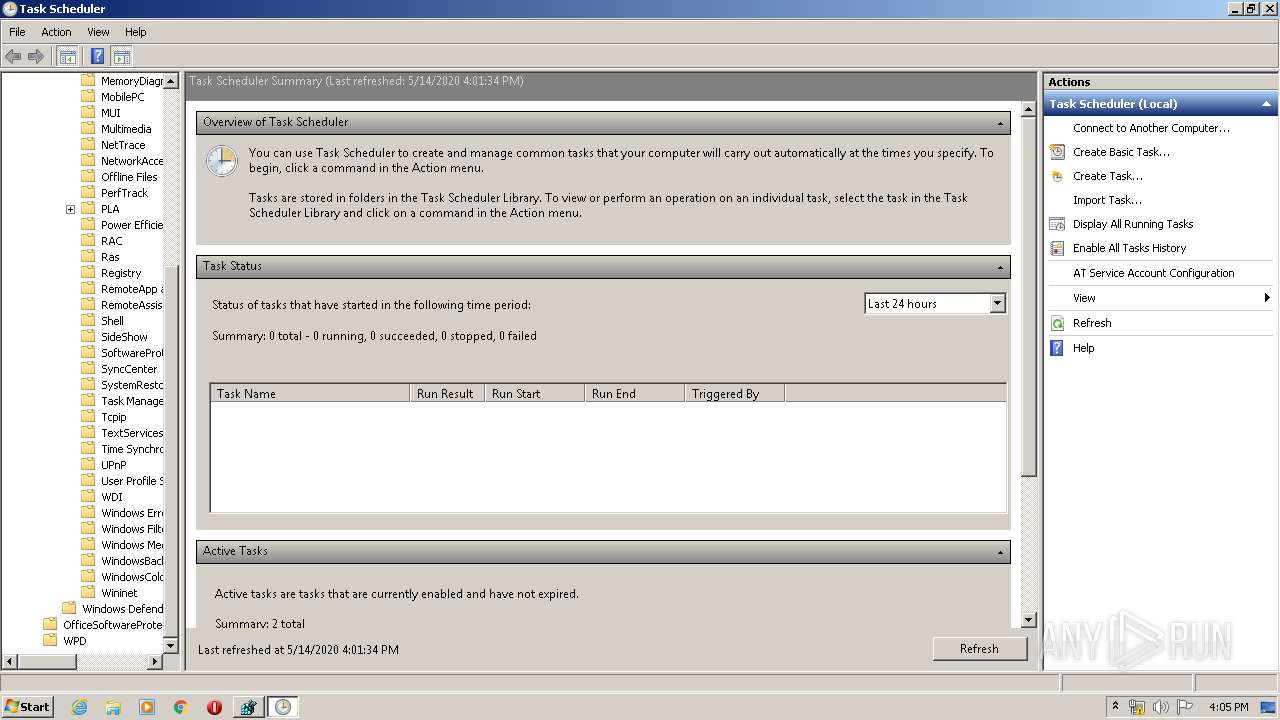

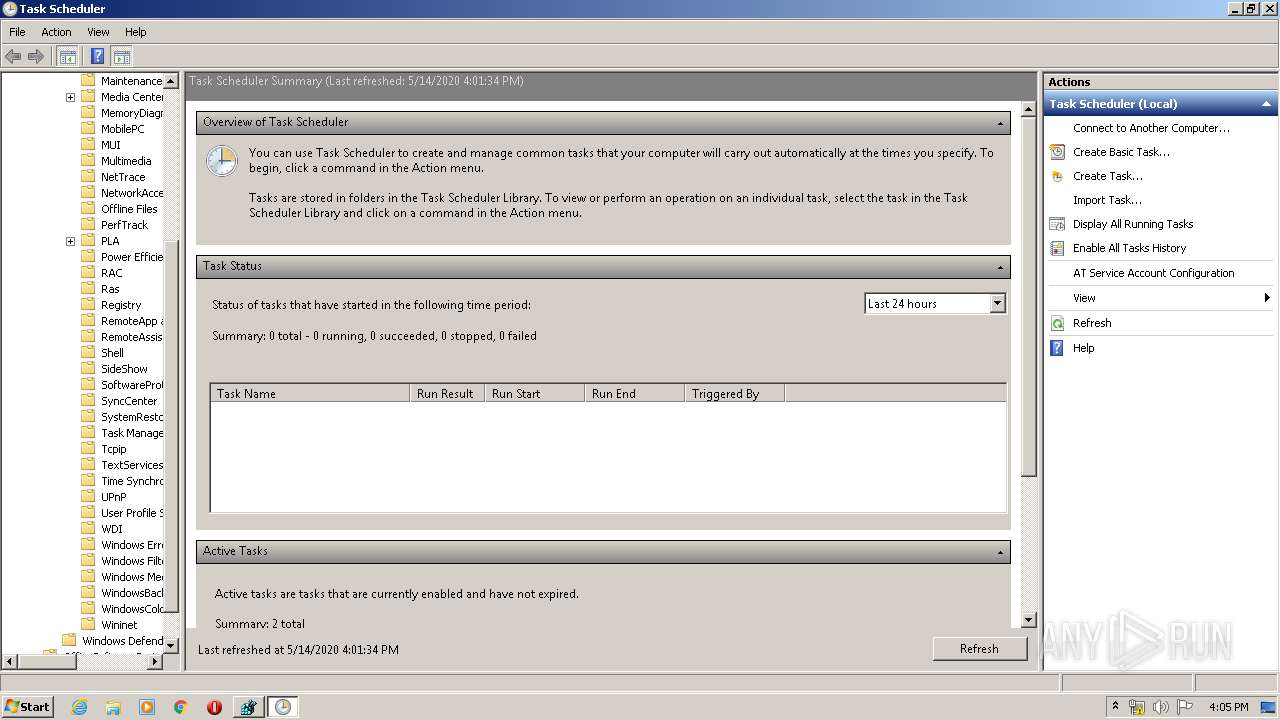

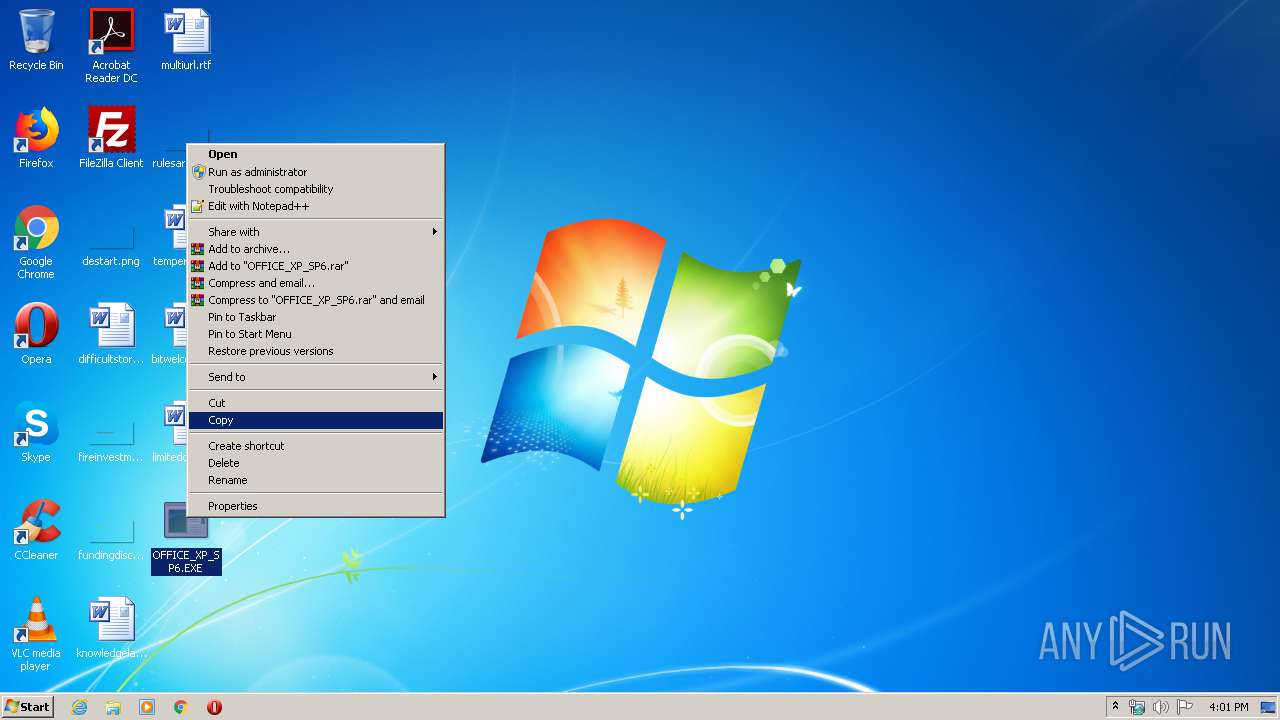

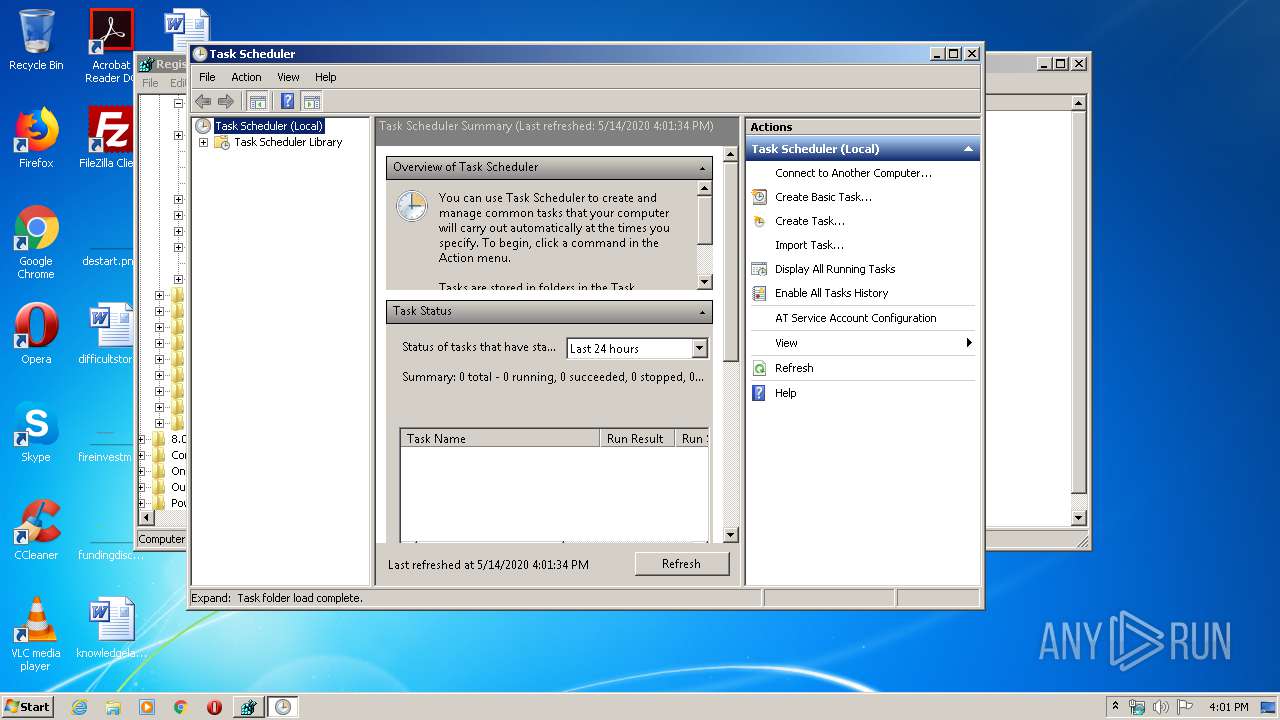

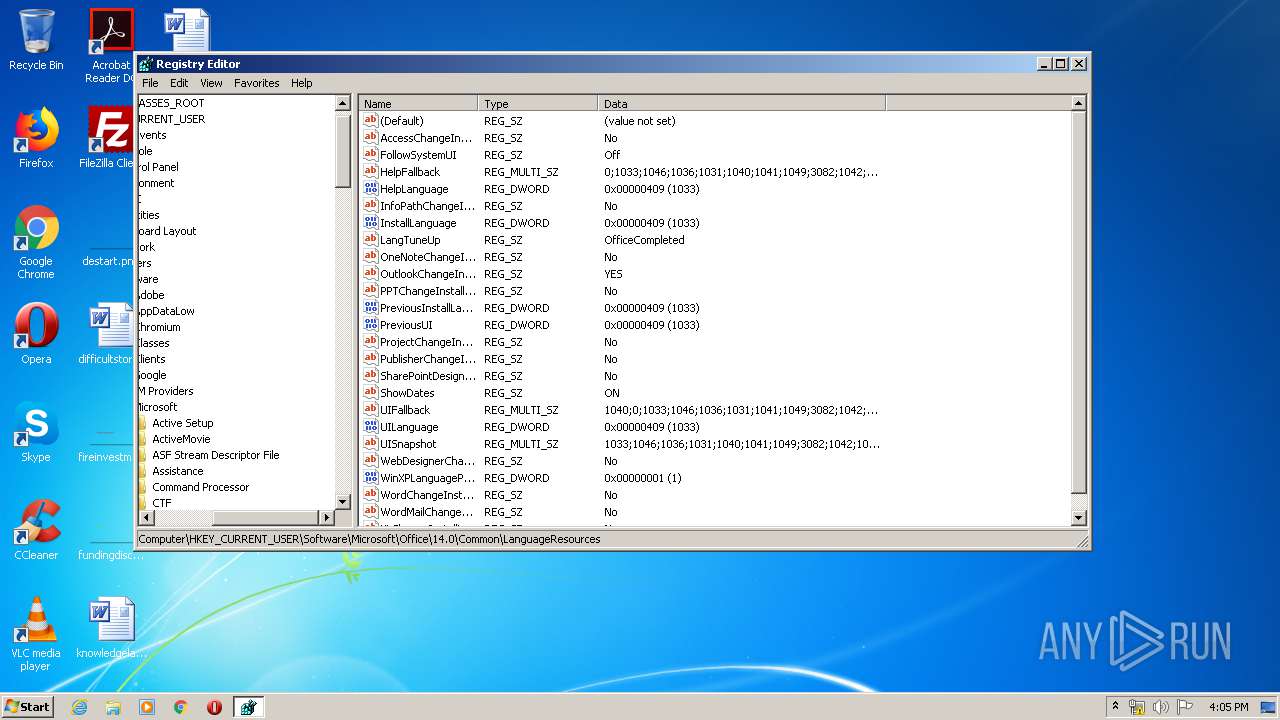

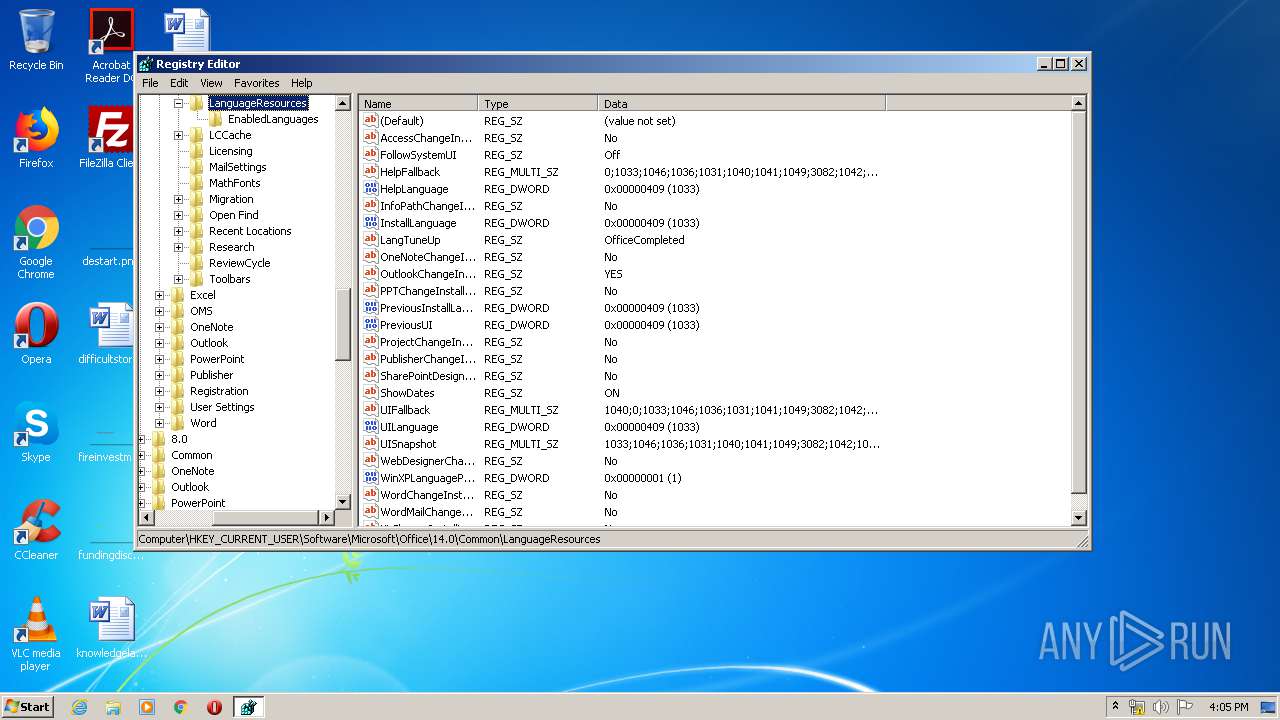

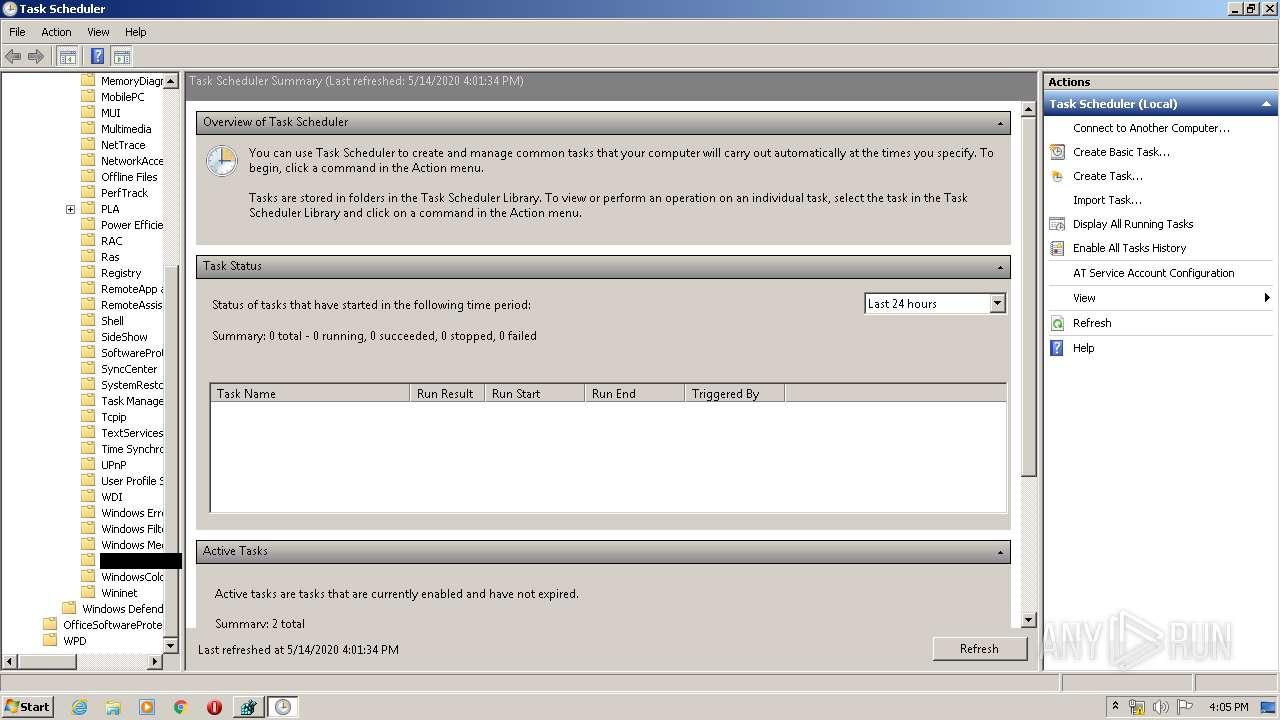

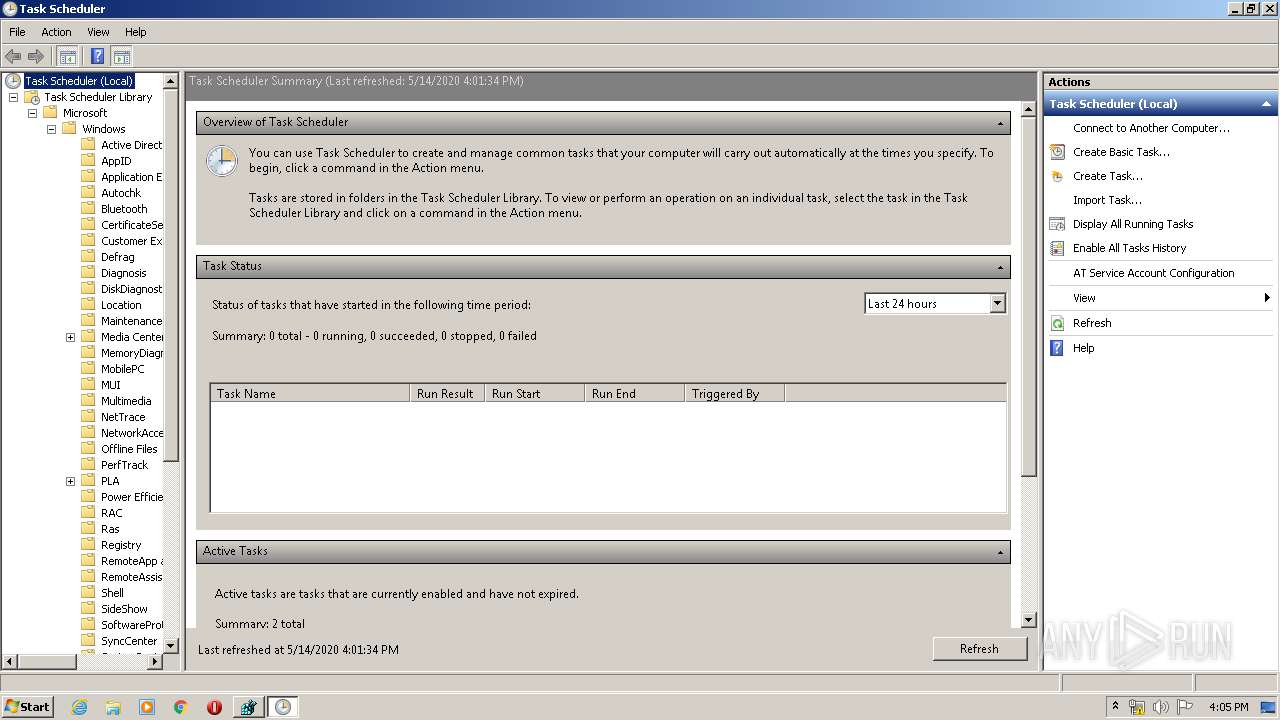

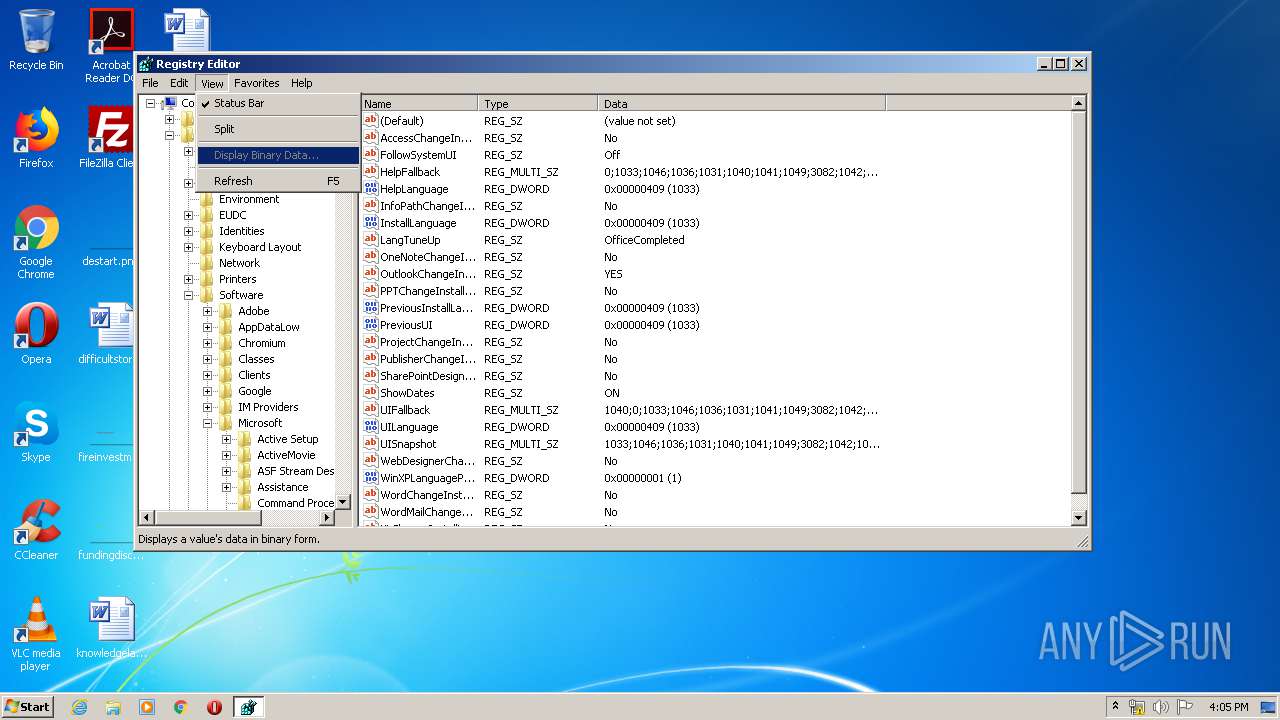

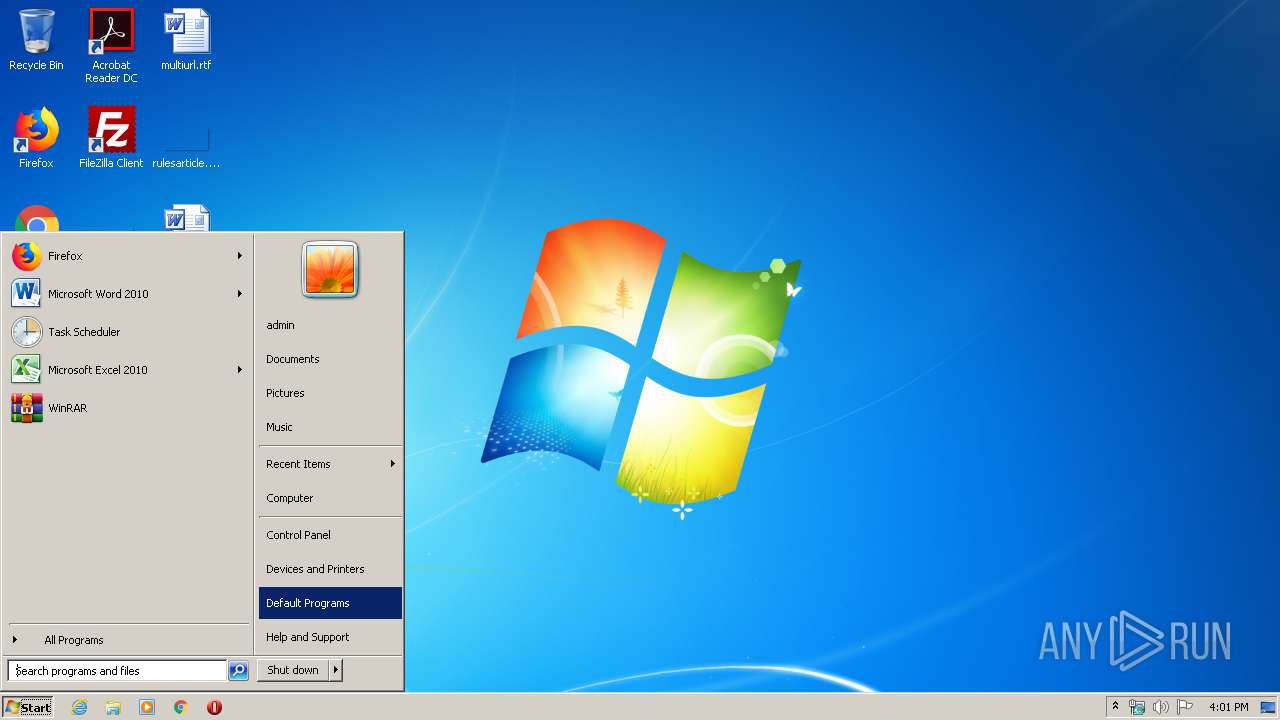

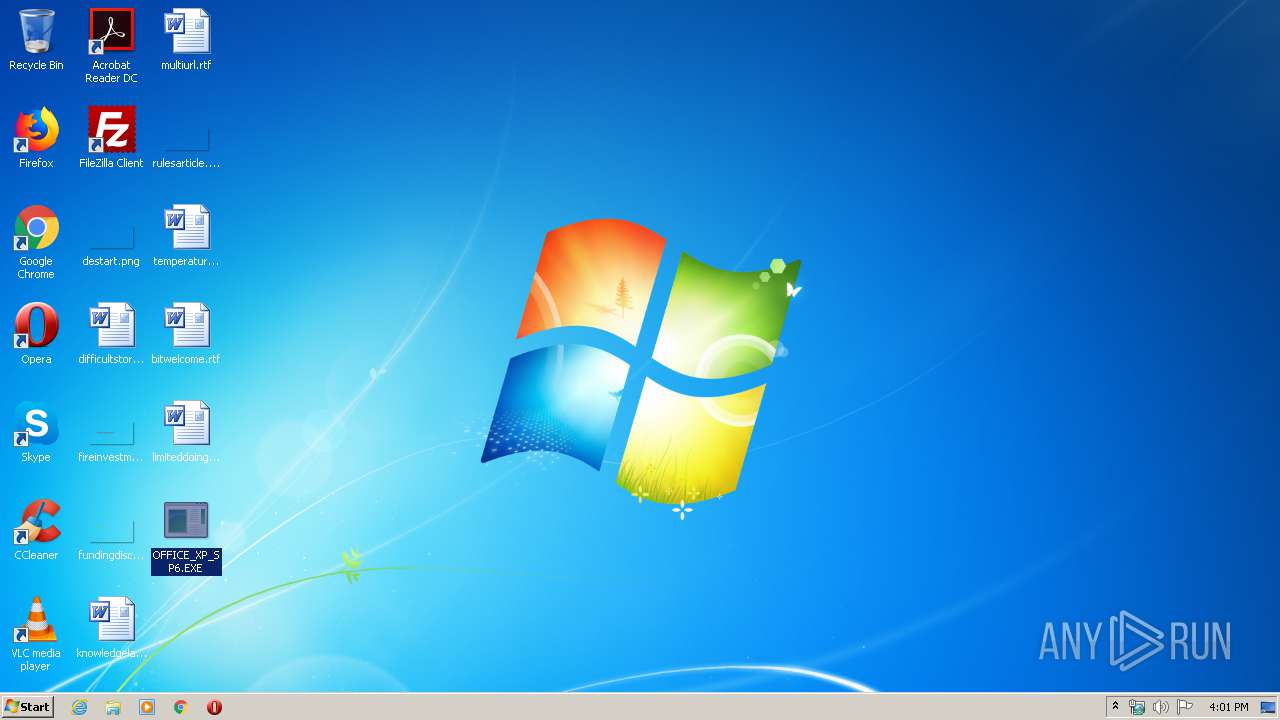

screenshotscreenshotscreenshotscreenshotscreenshotscreenshotscreenshotscreenshotscreenshotscreenshotscreenshotscreenshotscreenshotscreenshotscreenshotscreenshotscreenshotscreenshotscreenshotscreenshotscreenshotscreenshotscreenshotscreenshotscreenshotscreenshot
All screenshots are available in the full report
All screenshots are available in the full report
Total processes
61
Monitored processes
10
Malicious processes
1
Suspicious processes
1

Behavior graph

Click at the process to see the details
start drop and start drop and start office_xp_sp6.exe office_xp_sp6.exe msshield.exe cmd.exe no specs ping.exe no specs winmg.exe regedit.exe no specs regedit.exe mmc.exe no specs mmc.exe

Process information

PID
CMD
Path
Indicators
Parent process
588"C:\Windows\system32\mmc.exe" "C:\Windows\system32\taskschd.msc" /sC:\Windows\system32\mmc.exeexplorer.exe
User:
admin
Company:
Microsoft Corporation
Integrity Level:
MEDIUM
Description:
Microsoft Management Console
Exit code:
3221226540
Version:
6.1.7600.16385 (win7_rtm.090713-1255)
Modules
Images
c:\windows\system32\mmc.exe
c:\systemroot\system32\ntdll.dll
1780"C:\Windows\system32\msshield.exe" C:\Windows\system32\msshield.exe
OFFICE_XP_SP6.EXE
User:
admin
Company:
McAfee
Integrity Level:
HIGH
Description:
McAfee Security Shield
Exit code:
0
Version:
1.0.0.0
Modules
Images
c:\windows\system32\msshield.exe
c:\systemroot\system32\ntdll.dll
c:\windows\system32\mscoree.dll
c:\windows\system32\kernel32.dll
c:\windows\system32\kernelbase.dll
c:\windows\system32\advapi32.dll
c:\windows\system32\msvcrt.dll
c:\windows\system32\sechost.dll
c:\windows\system32\rpcrt4.dll
c:\windows\microsoft.net\framework\v4.0.30319\mscoreei.dll
2248ping -n 8 127.0.0.1 C:\Windows\system32\PING.EXEcmd.exe
User:
admin
Company:
Microsoft Corporation
Integrity Level:
HIGH
Description:
TCP/IP Ping Command
Exit code:
0
Version:
6.1.7600.16385 (win7_rtm.090713-1255)
Modules
Images
c:\windows\system32\ping.exe
c:\systemroot\system32\ntdll.dll
c:\windows\system32\kernel32.dll
c:\windows\system32\kernelbase.dll
c:\windows\system32\advapi32.dll
c:\windows\system32\msvcrt.dll
c:\windows\system32\sechost.dll
c:\windows\system32\rpcrt4.dll
c:\windows\system32\iphlpapi.dll
c:\windows\system32\nsi.dll
3048"C:\Windows\regedit.exe" C:\Windows\regedit.exe
explorer.exe
User:
admin
Company:
Microsoft Corporation
Integrity Level:
HIGH
Description:
Registry Editor
Exit code:
0
Version:
6.1.7600.16385 (win7_rtm.090713-1255)
Modules
Images
c:\windows\regedit.exe
c:\systemroot\system32\ntdll.dll
c:\windows\system32\kernel32.dll
c:\windows\system32\kernelbase.dll
c:\windows\system32\advapi32.dll
c:\windows\system32\msvcrt.dll
c:\windows\system32\sechost.dll
c:\windows\system32\rpcrt4.dll
c:\windows\system32\gdi32.dll
c:\windows\system32\user32.dll
3056"C:\Users\admin\Desktop\OFFICE_XP_SP6.EXE" C:\Users\admin\Desktop\OFFICE_XP_SP6.EXE
explorer.exe
User:
admin
Company:
McAfee
Integrity Level:
MEDIUM
Description:
McAfee Security Shield
Exit code:
0
Version:
1.0.0.0
Modules
Images
c:\users\admin\desktop\office_xp_sp6.exe
c:\systemroot\system32\ntdll.dll
c:\windows\system32\mscoree.dll
c:\windows\system32\kernel32.dll
c:\windows\system32\kernelbase.dll
c:\windows\system32\advapi32.dll
c:\windows\system32\msvcrt.dll
c:\windows\system32\rpcrt4.dll
c:\windows\system32\sechost.dll
c:\windows\microsoft.net\framework\v4.0.30319\mscoreei.dll
3092cmd /c ""C:\temp\1.bat" "C:\Users\admin\Desktop\OFFICE_XP_SP6.EXE""C:\Windows\system32\cmd.exeOFFICE_XP_SP6.EXE
User:
admin
Company:
Microsoft Corporation
Integrity Level:
HIGH
Description:
Windows Command Processor
Exit code:
1
Version:
6.1.7601.17514 (win7sp1_rtm.101119-1850)
Modules
Images
c:\windows\system32\cmd.exe
c:\systemroot\system32\ntdll.dll
c:\windows\system32\kernel32.dll
c:\windows\system32\kernelbase.dll
c:\windows\system32\msvcrt.dll
c:\windows\system32\winbrand.dll
c:\windows\system32\user32.dll
c:\windows\system32\gdi32.dll
c:\windows\system32\lpk.dll
c:\windows\system32\usp10.dll
3316"C:\Windows\system32\Winmg.exe" -w "C:\Windows\system32\msshield.exe" -s "procexp.exe,procexp64.exe,procexp64,procexp32,procexp32.exe,procexp,procmon,procmon.exe,net,net.exe,netstat,netstat.exe"C:\Windows\system32\Winmg.exe
msshield.exe
User:
admin
Company:
Microsoft
Integrity Level:
HIGH
Description:
Winmg
Exit code:
0
Version:
1.0.0.0
Modules
Images
c:\windows\system32\winmg.exe
c:\systemroot\system32\ntdll.dll
c:\windows\system32\mscoree.dll
c:\windows\system32\kernel32.dll
c:\windows\system32\kernelbase.dll
c:\windows\system32\advapi32.dll
c:\windows\system32\msvcrt.dll
c:\windows\system32\sechost.dll
c:\windows\system32\rpcrt4.dll
c:\windows\microsoft.net\framework\v4.0.30319\mscoreei.dll
3436"C:\Windows\regedit.exe" C:\Windows\regedit.exeexplorer.exe
User:
admin
Company:
Microsoft Corporation
Integrity Level:
MEDIUM
Description:
Registry Editor
Exit code:
3221226540
Version:
6.1.7600.16385 (win7_rtm.090713-1255)
Modules
Images
c:\windows\regedit.exe
c:\systemroot\system32\ntdll.dll
3464"C:\Windows\system32\mmc.exe" "C:\Windows\system32\taskschd.msc" /sC:\Windows\system32\mmc.exe
explorer.exe
User:
admin
Company:
Microsoft Corporation
Integrity Level:
HIGH
Description:
Microsoft Management Console
Exit code:
0
Version:
6.1.7600.16385 (win7_rtm.090713-1255)
Modules
Images
c:\windows\system32\mmc.exe
c:\systemroot\system32\ntdll.dll
c:\windows\system32\kernel32.dll
c:\windows\system32\kernelbase.dll
c:\windows\system32\gdi32.dll
c:\windows\system32\user32.dll
c:\windows\system32\lpk.dll
c:\windows\system32\usp10.dll
c:\windows\system32\msvcrt.dll
c:\windows\system32\mfc42u.dll
3544"C:\Users\admin\Desktop\OFFICE_XP_SP6.EXE" C:\Users\admin\Desktop\OFFICE_XP_SP6.EXE
explorer.exe
User:
admin
Company:
McAfee
Integrity Level:
HIGH
Description:
McAfee Security Shield
Exit code:
1
Version:
1.0.0.0
Modules
Images
c:\users\admin\desktop\office_xp_sp6.exe
c:\systemroot\system32\ntdll.dll
c:\windows\system32\mscoree.dll
c:\windows\system32\kernel32.dll
c:\windows\system32\kernelbase.dll
c:\windows\system32\advapi32.dll
c:\windows\system32\msvcrt.dll
c:\windows\system32\sechost.dll
c:\windows\system32\rpcrt4.dll
c:\windows\microsoft.net\framework\v4.0.30319\mscoreei.dll
Total events
242
Read events
223
Write events
18
Delete events
1

Modification events

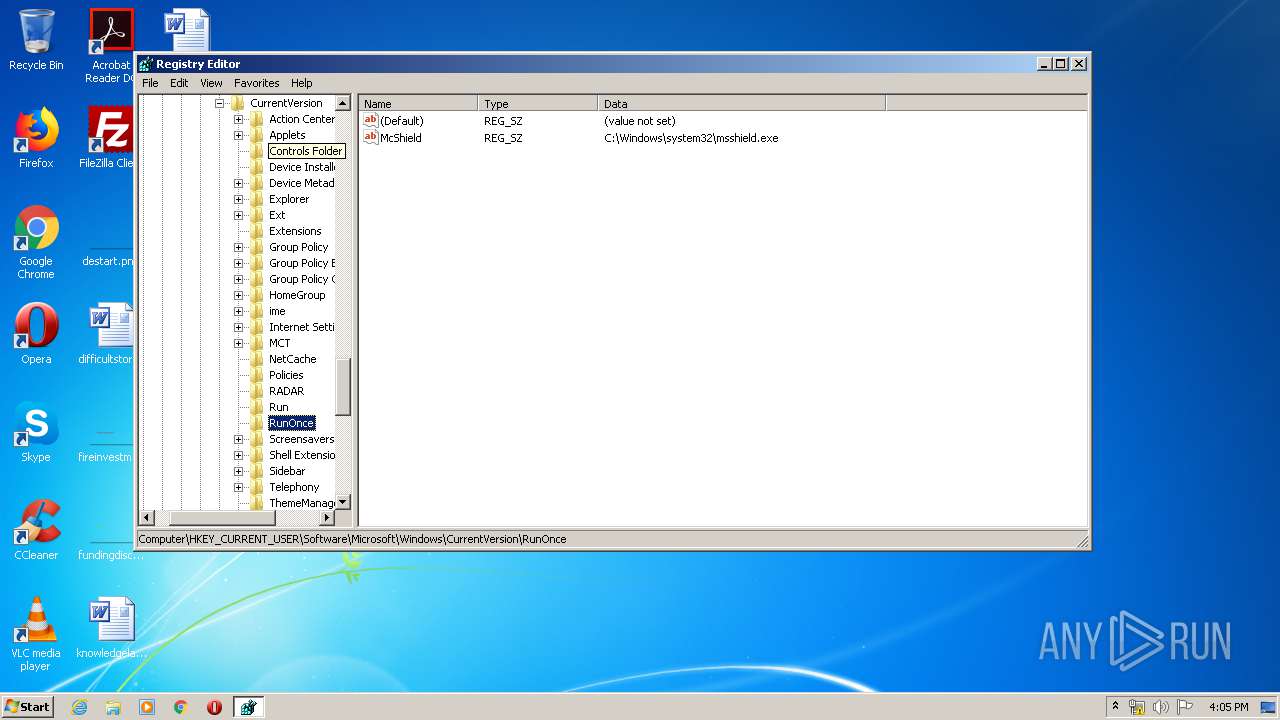

(PID) Process:(3056) OFFICE_XP_SP6.EXEKey:HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Run
Operation:writeName:McShield
Value:
C:\Windows\system32\msshield.exe
(PID) Process:(3056) OFFICE_XP_SP6.EXEKey:HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\RunOnce
Operation:writeName:McShield
Value:
C:\Windows\system32\msshield.exe
(PID) Process:(3544) OFFICE_XP_SP6.EXEKey:HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Run
Operation:writeName:McShield
Value:
C:\Windows\system32\msshield.exe
(PID) Process:(3544) OFFICE_XP_SP6.EXEKey:HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\RunOnce
Operation:writeName:McShield
Value:
C:\Windows\system32\msshield.exe
(PID) Process:(3544) OFFICE_XP_SP6.EXEKey:HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Run
Operation:writeName:McShield
Value:
C:\Windows\system32\msshield.exe
(PID) Process:(3544) OFFICE_XP_SP6.EXEKey:HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\RunOnce
Operation:writeName:McShield
Value:
C:\Windows\system32\msshield.exe
(PID) Process:(3544) OFFICE_XP_SP6.EXEKey:HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Internet Settings\ZoneMap
Operation:writeName:UNCAsIntranet
Value:
0
(PID) Process:(3544) OFFICE_XP_SP6.EXEKey:HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Internet Settings\ZoneMap
Operation:writeName:AutoDetect
Value:
1
(PID) Process:(1780) msshield.exeKey:HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Internet Settings\ZoneMap
Operation:writeName:UNCAsIntranet
Value:
0
(PID) Process:(1780) msshield.exeKey:HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Internet Settings\ZoneMap
Operation:writeName:AutoDetect
Value:
1
Executable files
2
Suspicious files
0
Text files
2
Unknown types
0

Dropped files

PID
Process
Filename
Type
3544OFFICE_XP_SP6.EXEC:\temp\1.battext
MD5:
SHA256:
3544OFFICE_XP_SP6.EXEC:\Windows\system32\msshield.exeexecutable
MD5:
SHA256:
1780msshield.exeC:\Windows\system32\Winmg.exeexecutable
MD5:
SHA256:
3464mmc.exeC:\Users\admin\AppData\Roaming\Microsoft\MMC\taskschdxml
MD5:
SHA256:
Download PCAP, analyze network streams, HTTP content and a lot more at the full report
HTTP(S) requests
0
TCP/UDP connections
0
DNS requests
1
Threats
0

HTTP requests

No HTTP requests
Download PCAP, analyze network streams, HTTP content and a lot more at the full report

Connections

No data

DNS requests

Domain
IP
Reputation
2.100.168.192.in-addr.arpa
whitelisted

Threats

No threats detected
Process
Message
OFFICE_XP_SP6.EXE
OFFICE_XP_SP6.EXE Information: 0 :
OFFICE_XP_SP6.EXE
OFFICE_XP_SP6.EXE Information: 0 :
OFFICE_XP_SP6.EXE
Running Path - C:\Users\admin\Desktop\OFFICE_XP_SP6.EXE, AutoRunPath - C:\Windows\system32\msshield.exe
OFFICE_XP_SP6.EXE
OFFICE_XP_SP6.EXE Information: 0 :
OFFICE_XP_SP6.EXE
First run detected
OFFICE_XP_SP6.EXE
OFFICE_XP_SP6.EXE Information: 0 :
OFFICE_XP_SP6.EXE
Current location : C:\Users\admin\Desktop\OFFICE_XP_SP6.EXE
OFFICE_XP_SP6.EXE
Current location : C:\Users\admin\Desktop\OFFICE_XP_SP6.EXE
OFFICE_XP_SP6.EXE
Copying self to auto-run path: C:\Windows\system32\msshield.exe
OFFICE_XP_SP6.EXE
Current location : C:\Users\admin\Desktop\OFFICE_XP_SP6.EXE
